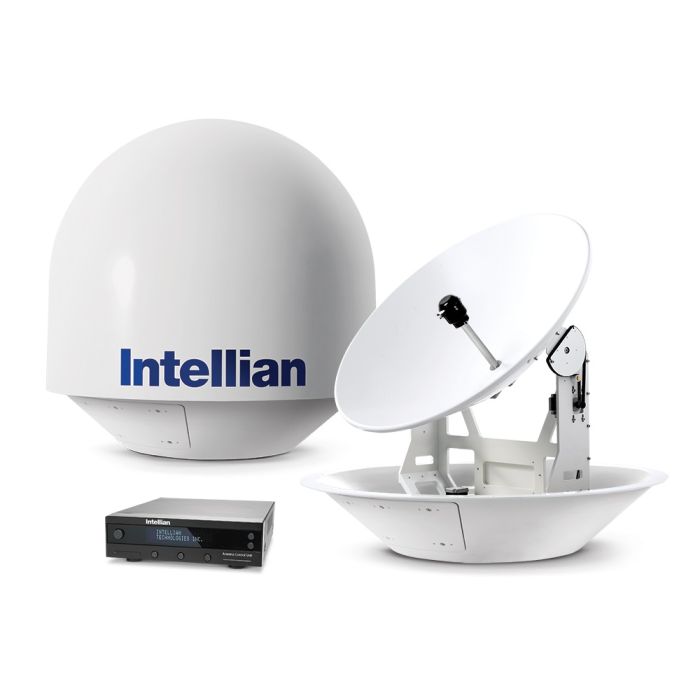

Intellian i9P Auto Skew US / Canada Marine Satellite TV System (B4-919AA)
In stock
- BRAND:
- INTELLIAN
- MODEL:
- i9P
- PART #:
- B4-919AA
- Warranty:
- 3 YEARS PARTS 1 YEAR LABOR
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Intellian-i9P-System-B4-919AA
The Intellian i6W 2-axis Global Marine Satellite TV System is a high-performance satellite TV system designed for larger yachts and commercial vessels. It offers a reliable and efficient way to enjoy your favorite TV programs while at sea, regardless of your location.
Key Features:
- Global Coverage: The i6W is designed to receive satellite signals from various regions worldwide, including North America, Europe, the Middle East, and Asia Pacific.
- WorldView LNB: This advanced LNB module allows for seamless switching between different satellite frequencies and polarizations, eliminating the need for manual LNB changes.
- 2-Axis Stabilization: The system's 2-axis stabilization ensures optimal signal reception, even in rough seas.
- Compact Design: The i6W features a compact and stylish design, making it easy to install on various vessels.
- High-Performance Antenna: The 60cm reflector provides excellent signal reception and picture quality.
- Easy Installation and Operation: Simple to install and use.
Benefits:
- Enjoy TV at Sea: Watch your favorite TV shows and movies while cruising.
- Enhanced Entertainment: Improve your onboard entertainment experience.
- Reliable Reception: Ensures stable signal reception, even in challenging marine environments.
- Global Coverage: Access your favorite TV programs from anywhere in the world.
Specifications
| MODEL | i9P |
|---|---|
| PART # | B4-919AA |
| PRODUCT TYPE | SATELLITE TV |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| BRAND | INTELLIAN |
| NETWORK | BELL TV, DIRECTV, DISH NETWORK |
| USE TYPE | MARITIME |
| ACCESSORY TYPE | ANTENNA |
| ANTENNA SIZE | 85 cm (33.5 inch) |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40°C to 80°C (-40°F to 176°F) |
| FREQUENCY | Ku BAND |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| WEIGHT | 56,2 kg (124 lb) |
| RADOME HEIGHT | 121.0 cm (47.5 inch) |
| RADOME DIAMETER | 113 cm (44.5 inch) |
| RECEPTION FREQUENCY | Ku-band： 10.7 ~ 12.75 GHz |
| POLARIZATION | CIRCULAR AND LINEAR |
| MINIMUM EIRP | 44dBW |
| AZIMUTH RANGE | 680º |
| ELEVATION RANGE | -15º to 90º |
| SHIP'S MOTION | Roll ±25º, Pitch ±15º |
| ROLL & PITCH RESPONSE RATE | 30º / sec |
| TURNING RATE | 30º / sec |
| VESSEL SIZE | OVER 80 FEET |
| RF OUTPUT | DUAL / QUAD OUTPUT |
Feature
Fully Automated System
Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.
Enhanced Antenna
Highly efficient 34 inch parabolic antenna enables 44dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization.
Wide Range Search (WRS) Algorithm
Competitor methods search for the narrow-bandwidth of the main lobe. However Intellian’s exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
Fully Automated Digital Video Broadcasting (DVB)
Identification DVB Decoder with CPLD enables high speed identification.
Dynamic Beam Tilting (DBT) Technology
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main-reflector means less noise and extends the product life.
DVB-S2 Signal Identification
High speed identification employing DVB-S2 Decoder.
New Type Antenna Control Unit
• Easy to change and update satellite information
• Easy antenna status check and automatic diagnosis
• Easy antenna control using PC interface
Automatic Polarization (Skew-angle) Control
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal / Vertical Polarization.
Built-in GPS and NMEA 0183 Interface Port
The i9P includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.
Intellian i9P Coverage Maps
