| PRODUCT TYPE | SATELLITE TV |
|---|---|
| USE TYPE | MARITIME |
| BRAND | INTELLIAN |
| MODEL | i2 |
| PART # | B4-I2DN |
| NETWORK | BELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| ANTENNA SIZE | 33 cm (13 inch) |
| WEIGHT | 4,5 kg (9,5 lb) |
| FREQUENCY | Ku BAND |
| ACCESSORY TYPE | ANTENNA |
| RECEPTION FREQUENCY | Ku-band： 10.7 ~ 12.75 GHz |
| RADOME HEIGHT | 38 cm (15.0 inch) |
| RADOME DIAMETER | 37 cm (14.6 inch) |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40°C to 80°C (-40°F to 176°F) |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| POLARIZATION | VERTICAL / HORIZONTAL |
| AZIMUTH RANGE | 680º |
| ELEVATION RANGE | 10° ~ 80° |
| SHIP'S MOTION | Roll ±25º, Pitch ±15º |
| MINIMUM EIRP | 51 dBW |
| ROLL & PITCH RESPONSE RATE | 60° / sec |
| TURNING RATE | 60° / sec |
| RF OUTPUT | DUAL OUTPUT |
| SHIPS FROM | IRVINE, CA (USA), SEOUL (SOUTH KOREA), ROTTERDAM (NETHERLANDS) |
Intellian i2 Features
Fully Automated System
Automatic Satellite Search and Identification Function
2-axis Stabilization provides high speed tracking
High Performance Antenna
33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
Circular or linear polarization depending on region and LNB selected
Built-in HD module for Ku-band HD TV reception
iQ² Quick&Quiet℠ Technology
iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas
Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU
Automated updates and diagnostics via Aptus
Simple antenna status quick reference
Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
Using the MIM, a master receiver can be selected to control the target satellite
In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home
Interface to External NMEA 0183 GPS Interface
Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time
Compact Size
37cm (14.6 inch) antenna radome diameter
Very light antenna weighs less than 4.5 kg (10 pounds)
Three Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017.

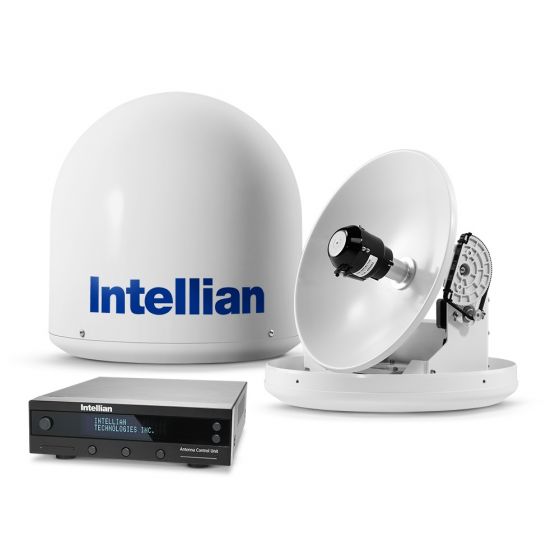

Whats Included
All Satellite Systems include the following parts as standard
- Antenna & Radome 33 cm (13 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Mounting Template
- Quick Installation Guide
Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws
Intellian i2 Coverage Maps
