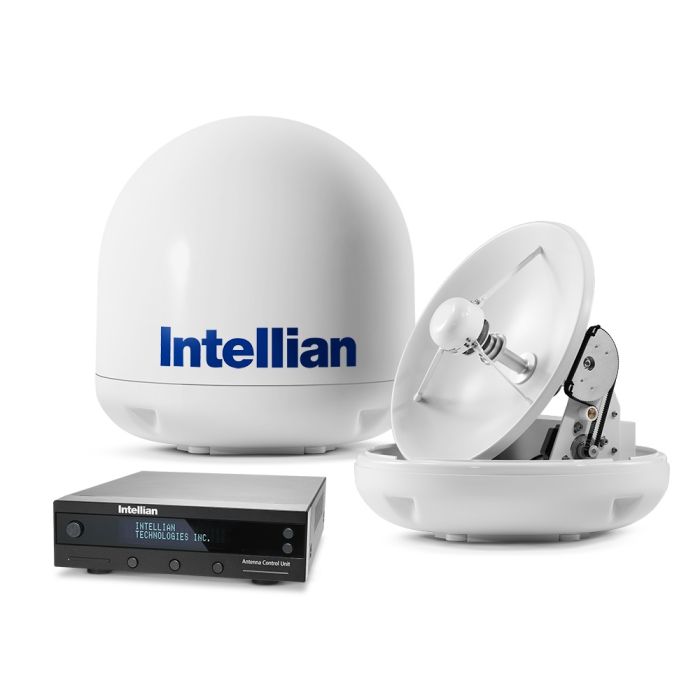

Intellian i3 Marine Satellite TV System w/ MIM for Dish Network and Bell TV (B4-I3DN)
The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.
In stock
- BRAND:
- INTELLIAN
- MODEL:
- i3
- PART #:
- B4-I3DN
- Warranty:
- 3 YEARS PARTS 2 YEAR LABOR
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Intellian-i3-System-B3-I3DN
US$3,795.00
US$3,150.00
The Intellian i3 Marine Satellite TV System with MIM for Dish Network and Bell TV (B4-I3DN) is a compact and powerful satellite TV system designed for boats over 25 feet. It offers superior tracking performance and high-quality TV reception, even in challenging marine environments.
Key Features:
- Compact Design: Sleek and stylish design with a small footprint.
- High-Performance Antenna: Provides excellent signal reception and picture quality.
- Multi-Satellite Interface Module (MIM): Enables seamless switching between satellites for Dish Network and Bell TV.
- HD and SD Programming: Supports both high-definition and standard-definition programming.
- Easy Installation and Operation: Simple to install and use.
Benefits:
- Enjoy TV at Sea: Watch your favorite TV shows and movies while cruising.
- Enhanced Entertainment: Improve your onboard entertainment experience.
- Reliable Reception: Ensures stable signal reception, even in challenging marine environments.
Specifications
| MODEL | i3 |
|---|---|
| PART # | B4-I3DN |
| PRODUCT TYPE | SATELLITE TV |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| BRAND | INTELLIAN |
| NETWORK | BELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK, SKY BRAZIL, TELUS SATELLITE TV |
| USE TYPE | MARITIME |
| ACCESSORY TYPE | ANTENNA |
| ANTENNA SIZE | 37 cm (14.6 inch) |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40°C to 80°C (-40°F to 176°F) |
| FREQUENCY | Ku BAND |
| WEIGHT | 9.0 kg (19.8 pounds) |
| RADOME HEIGHT | 44 cm (17.3 inch) |
| RADOME DIAMETER | 43 cm (16.9 inch) |
| RECEPTION FREQUENCY | Ku-band： 10.7 ~ 12.75 GHz |
| POLARIZATION | RHCP / LHCP, VERTICAL / HORIZONTAL |
| MINIMUM EIRP | 50 dBW |
| AZIMUTH RANGE | 680º |
| ELEVATION RANGE | 10° ~ 80° |
| SHIP'S MOTION | Roll ±25º, Pitch ±15º |
| ROLL & PITCH RESPONSE RATE | 60° / sec |
| TURNING RATE | 60° / sec |
| VESSEL SIZE | 25 FEET |
| RF OUTPUT | DUAL OUTPUT |
Feature
Intellian i3 System Features
Fully Automated System
- Automatic Satellite Search and Identification Function
- 2-axis Stabilization provides high speed tracking
High Performance Antenna
- 37 cm (15in) diameter parabolic antenna for receiving the Ku-band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception
Intellian’s Patented Quick&Quiet℠ Technology (iQ²)
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
Antenna Control Unit
- Intuitive controls with a digital information display on the ACU
- Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
- DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
Multiple Receiver Capability
- Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
- Using the MIM a master receiver can be selected to control the target satellite
- In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
Built-in GPS and NMEA 0183 Interface
- The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
- The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU
Compact Size
- 43cm (16.9 inch) antenna radome diameter
- Antenna weighs less than 9 kg (19.8 pounds)
Three Year Global Warranty
- Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
- The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017
What's included
Whats Included
All Satellite Systems include the following parts as standard
- Antenna & Radome 37 cm (14.6 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide
Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

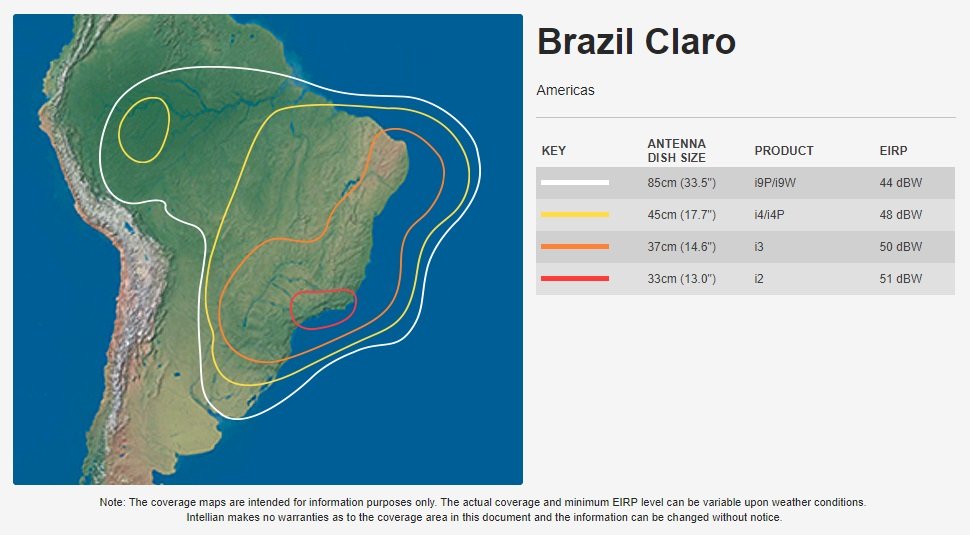

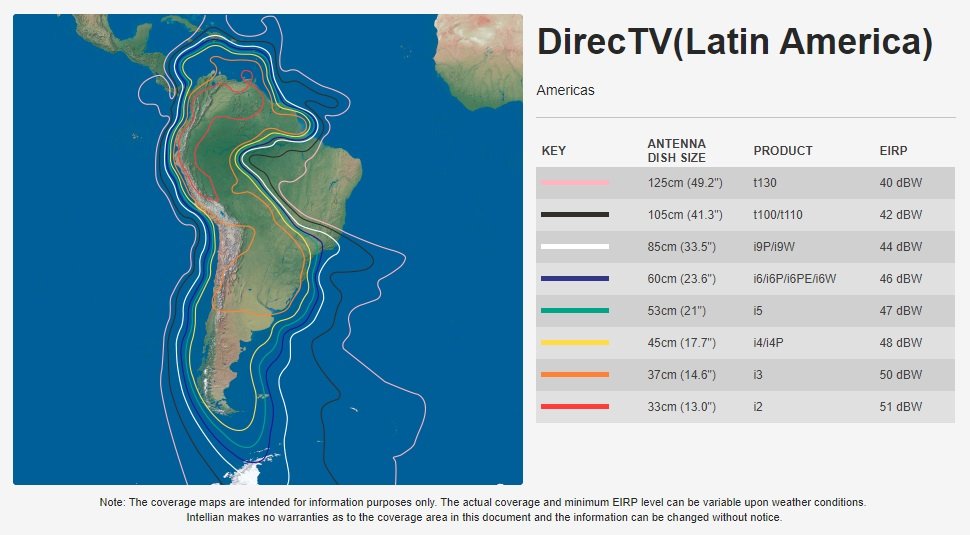

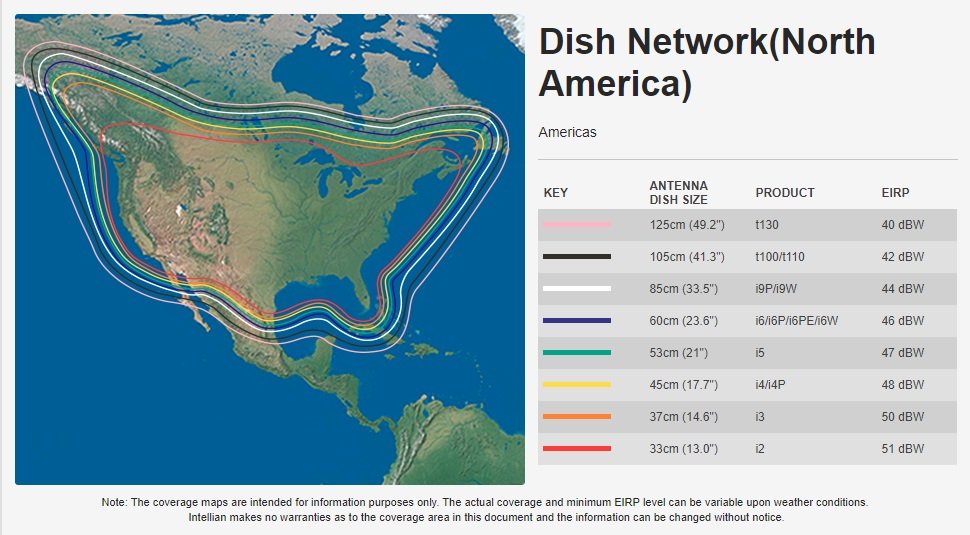

Intellian i3 Coverage Maps
Downloads
BROCHURES
(Size: 383.4 KB)
QUICK START
(Size: 192.6 KB)
USER MANUALS
(Size: 11.6 MB)
Customer Reviews
Value
5
I would buy this antenna again
Review by
Happy Sailor, Marina Del Rey, California
I installed the antenna on the back of my Irwin 52 Ketch and once I got the unit programmed it worked flawlessly. Shortly after installation I went for a short cruise and it tracked the satellites while we were anchored without any problems.
