| PRODUCT TYPE | SATELLITE TV |
|---|---|
| USE TYPE | MARITIME |

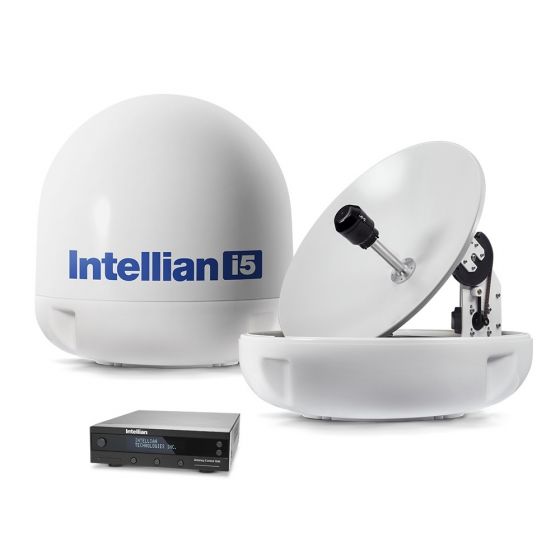

| BRAND | INTELLIAN |
| MODEL | i5 |
| PART # | B4-509AA |
| NETWORK | BELL TV, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| ANTENNA SIZE | 53.5 cm (21 inch) |
| WEIGHT | 17,3 kg (38 lb) |
| FREQUENCY | Ku BAND |
| ACCESSORY TYPE | ANTENNA |
| RECEPTION FREQUENCY | Ku-band： 10.7 ~ 12.75 GHz |
| RADOME HEIGHT | 63 cm (25 inch) |
| RADOME DIAMETER | 61 cm (24 inch) |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40°C to 80°C (-40°F to 176°F) |
| VESSEL SIZE | 35 - 60 FEET |
| POLARIZATION | RHCP / LHCP |
| AZIMUTH RANGE | 680º |
| ELEVATION RANGE | 0° to 90° |
| SHIP'S MOTION | Roll ±25º, Pitch ±15º |
| MINIMUM EIRP | 47dBW |
| ROLL & PITCH RESPONSE RATE | 50º / sec |
| TURNING RATE | 50º / sec |
| RF OUTPUT | DUAL OUTPUT |
Whats Included
All Satellite Systems include the following parts as standard
- Antenna & Radome 53.5 cm (21 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide
Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws
Intellian i5 Coverage Maps
