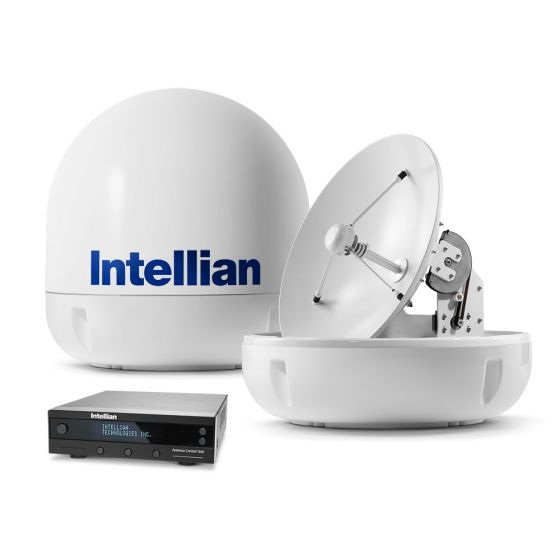

Intellian i6 US Marine Satellite TV System with 60cm (23.6 inch) Reflector & All-Americas LNB (B4-609AA)

Name: Intellian i6 US Marine Satellite TV System with 60cm (23.6 inch) Reflector & All-Americas LNB (B4-609AA)
Brand: INTELLIAN
SKU: Intellian-i6-System-B4-609AA
Price: 5836 USD
Availability: InStock

INTELLIAN i6 / i6P BROCHURE (PDF)

INTELLIAN WORLDVIEW LNB DATASHEET (PDF)

INTELLIAN i3 / i4 / i6 QUICK START (PDF)

SEE ALL DOWNLOADS

US$7,295.00 US$5,836.00

BRAND:

INTELLIAN

MODEL:

PART #:

B4-609AA

WARRANTY:

3 YEARS PARTS 2 YEAR LABOR

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 3-5 BUSINESS DAYS

Product Code:

Intellian-i6-System-B4-609AA

More Information
PRODUCT TYPE	SATELLITE TV
USE TYPE	MARITIME
BRAND	INTELLIAN
MODEL	i6
PART #	B4-609AA
NETWORK	BELL TV, DIRECTV, DISH NETWORK
USAGE AREA	REGIONAL - SEE COVERAGE MAP
ANTENNA SIZE	60 cm (23.6 inch)
WEIGHT	20,0 kg (44,0 livres)
FREQUENCY	Ku BAND
ACCESSORY TYPE	ANTENNA
RECEPTION FREQUENCY	Ku-band： 10.7 ~ 12.75 GHz
RADOME HEIGHT	72 cm (28.3 inch)
RADOME DIAMETER	70 cm (27.6 inch)
OPERATING TEMPERATURE	-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE	-40°C to 80°C (-40°F to 176°F)
VESSEL SIZE	OVER 70 FEET
CERTIFICATIONS	CE COMPLIANCE, FCC
POLARIZATION	CIRCULAR AND LINEAR
AZIMUTH RANGE	680º
ELEVATION RANGE	5º to 90º
SHIP'S MOTION	Roll ±25º, Pitch ±15º
ROLL & PITCH RESPONSE RATE	45º / sec
MINIMUM EIRP	46dBW
TURNING RATE	45º / sec
RF OUTPUT	QUAD OUTPUT

Intellian i6 Features

Fully Automated System

Automatic Satellite Search and Identification Function
2-axis high speed tracking system

High Performance Antenna

60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
Circular or linear polarization depending on region and LNB selected
Built-in HD module for Ku-band HD TV reception

iQ²: Quick&Quiet℠ Technology

iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

Intuitive controls and digital satellite information display on the ACU
Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

Multiple Receiver Capability

Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
Using the MIM a master receiver can be selected to control the target satellite
In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

Built-in GPS and NMEA 0183 Interface

The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

Stylish Radome Profile

70 cm (27.5 inch) antenna radome diameter
Antenna weighs less than 20 kg (44 lbs)

Three Year Global Warranty

Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

All Satellite Systems include the following parts as standard
