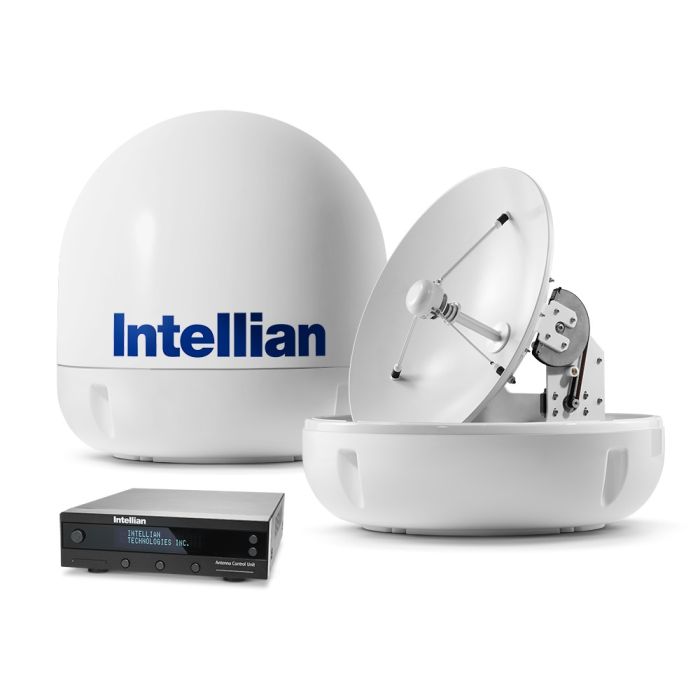

Intellian i6 US Marine Satellite TV System with 60cm (23.6 inch) Reflector & All-Americas LNB (B4-609AA)
Intellian's best-selling system, the i6 is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6 is ideal for ocean cruisers, larger yachts and commercial vessels.
In stock
- BRAND:
- INTELLIAN
- MODEL:
- i6
- PART #:
- B4-609AA
- Warranty:
- 3 YEARS PARTS 2 YEAR LABOR
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Intellian-i6-System-B4-609AA
US$7,295.00
US$5,836.00
The Intellian i6 Marine Satellite TV System with 60cm (23.6 inch) Reflector & All-Americas LNB (B4-609AA) is a high-performance satellite TV system designed for boats and yachts. It offers a reliable and efficient way to enjoy your favorite TV programs while at sea.
Key Features:
- Compact Design: Sleek and stylish design with a small footprint.
- High-Performance Antenna: Provides excellent signal reception and picture quality.
- Multi-Satellite Interface Module (MIM): Enables seamless switching between satellites for Dish Network and Bell TV.
- HD and SD Programming: Supports both high-definition and standard-definition programming.
- Easy Installation and Operation: Simple to install and use.
Benefits:
- Enjoy TV at Sea: Watch your favorite TV shows and movies while cruising.
- Enhanced Entertainment: Improve your onboard entertainment experience.
- Reliable Reception: Ensures stable signal reception, even in challenging marine environments.
Specifications
| MODEL | i6 |
|---|---|
| PART # | B4-609AA |
| PRODUCT TYPE | SATELLITE TV |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| BRAND | INTELLIAN |
| NETWORK | BELL TV, DIRECTV, DISH NETWORK |
| USE TYPE | MARITIME |
| ACCESSORY TYPE | ANTENNA |
| ANTENNA SIZE | 60 cm (23.6 inch) |
| OPERATING TEMPERATURE | -25Ā°C to 55Ā°C (-13Ā°F to 131Ā°F) |
| STORAGE TEMPERATURE | -40Ā°C to 80Ā°C (-40Ā°F to 176Ā°F) |
| FREQUENCY | Ku BAND |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| WEIGHT | 20,0 kg (44,0 livres) |
| RADOME HEIGHT | 72 cm (28.3 inch) |
| RADOME DIAMETER | 70 cm (27.6 inch) |
| RECEPTION FREQUENCY | Ku-bandļ¼ 10.7 ~ 12.75 GHz |
| POLARIZATION | CIRCULAR AND LINEAR |
| MINIMUM EIRP | 46dBW |
| AZIMUTH RANGE | 680Āŗ |
| ELEVATION RANGE | 5Āŗ to 90Āŗ |
| SHIP'S MOTION | Roll Ā±25Āŗ, Pitch Ā±15Āŗ |
| ROLL & PITCH RESPONSE RATE | 45Āŗ / sec |
| TURNING RATE | 45Āŗ / sec |
| VESSEL SIZE | OVER 70 FEET |
| RF OUTPUT | QUAD OUTPUT |
Feature
Ā Intellian i6 FeaturesĀ Ā Ā
Ā Fully Automated System
- Automatic Satellite Search and Identification Function
- 2-axis high speed tracking system
- 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
- Circular or linear polarization depending on region and LNB selected
- Built-in HD module for Ku-band HD TV reception
- iQĀ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
- Intuitive controls and digital satellite information display on the ACU
- Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
- DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
Ā Multiple Receiver Capability
- Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
- Using the MIM a master receiver can be selected to control the target satellite
- In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
- The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU
- 70 cm (27.5 inch) antenna radome diameter
- Antenna weighs less than 20 kg (44 lbs)
- Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
- The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017
What's included
All Satellite Systems include the following parts as standard
- Antenna & Radome 60 cm (24ā³) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide
Installation Kit
- ACU Table Mounting Bracket Ć 2EA
- 15 m (49 ft) Ć 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) Ć 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) Ć 1EA DC Power Cable
- 1.8 m (6 ft) Ć 1EA PC Serial Cable
- Connectors & Screws
