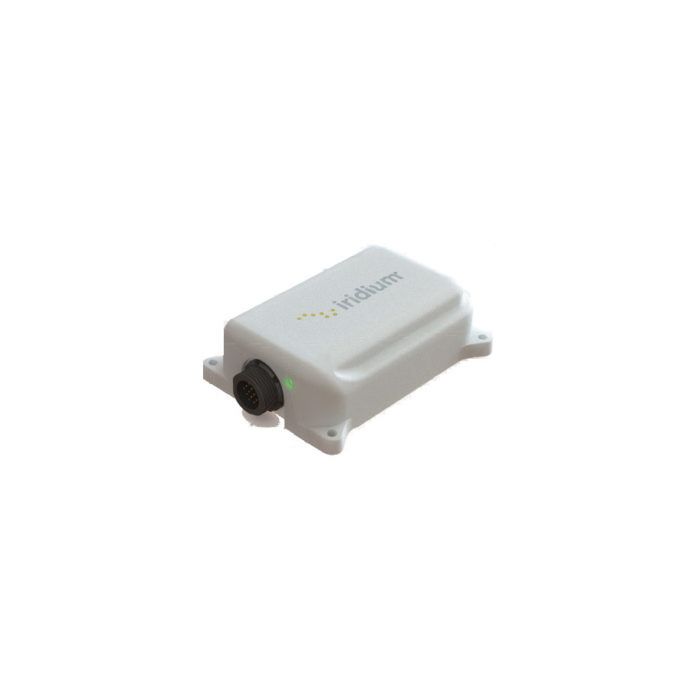

Iridium Edge Pro Short Burst Data Satellite Modem (EDGEPRO9690)
In stock
- BRAND:
- IRIDIUM
- MODEL:
- EDGE PRO
- PART #:
- EDGEPRO9690
- ORIGIN:
- Canada
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Iridium-Edge-Pro-SBD-Modem
The Iridium Edge Pro Short Burst Data Satellite Modem (EDGEPRO9690) is a compact and powerful device designed to enable reliable, high-speed data transmission in the most remote and challenging environments. This cutting-edge modem leverages the global Iridium satellite network to provide seamless connectivity for IoT devices, remote sensors, and other applications requiring short bursts of data. With its robust design and advanced features, the EDGEPRO9690 is the ideal solution for critical applications where reliable, secure, and efficient data transmission is paramount.
Specifications
| MODEL | EDGE PRO |
|---|---|
| PART # | EDGEPRO9690 |
| PRODUCT TYPE | SATELLITE M2M, SATELLITE TRACKING |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| OPERATING TEMPERATURE | -40ĀŗC to 85ĀŗC (-40ĀŗF to 185ĀŗF) |
| FREQUENCY | L BAND (1-2 GHz) |
| HARMONIZED TARIFF NUMBER | 85177900 |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 127 mm (5") |
| WIDTH | 90 mm (3.54") |
| DEPTH | 41 mm (1.61") |
| WEIGHT | 200 grams (7.05 oz) |
Feature
Network:
- Message Size: 240 bytes (Receive), 370 bytes (Transmit)
- Frequency: 1616 – 1626.5 MHz
Mechanical:
- Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
- Ingress Protection: IP 67
- Side and bottom cable exits
Environmental:
- Operating temperature range: -40C to 85C
- Storage temperature range: -40C to 85C
Interfaces:
- RS232 AT command interface
- On/Off control lines
Power:
- Power Supply ( 9-32V), SAE J1455 Load dump protected
- Reverse Polarity Protection
- Maximum Power: 1.6W (peak for short transmit burst)
- Low Power Modes: < 100uA
Certifications:
- Iridium® satellite network certification
- FCC, IC, CE, Australia approvals
- RoHS compliant
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
