| PRODUCT TYPE | SATELLITE M2M |
|---|---|
| USE TYPE | MARITIME, VEHICULAR |
| BRAND | IRIDIUM |
| MODEL | 9603N |
| PART # | SBDN9603E |
| NETWORK | IRIDIUM |
| CONSTELLATION | 66 SATELLITES |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM SBD |
| LENGTH | 31.5 mm |
| WIDTH | 29.6 mm |
| DEPTH | 8.1 mm |
| WEIGHT | 11.4 gr |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, PERSONNEL & ASSET TRACKING, REMOTE AUTOMATION & CONTROL |
| POWER REQUIREMENTS | +5 V +/- 0.5 V |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
Features
- Single header connector for Power & On/Off Control
- RS232 Interface (Simple AT command interface)
- Network Available
- Light weight (11.4 grams)

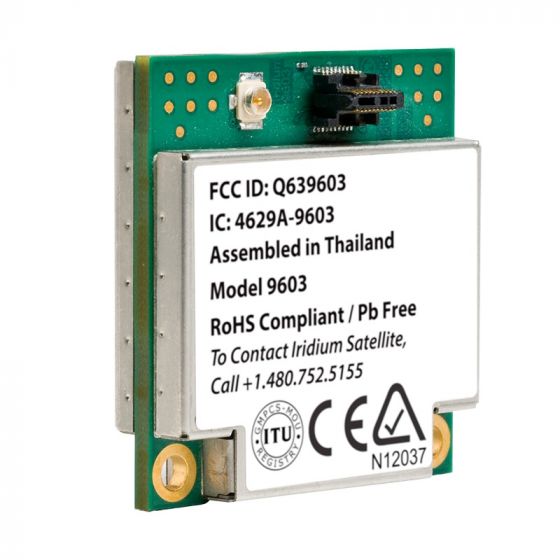

- Small single board transceiver (34.5mm X 29.6mm X 8.1mm)
- Iridium Short Burst Data service
- Mobile originated messages up to 340 bytes
- Mobile terminated messages up to 270 bytes
- Low, uniform global latency (less than 1 minute)
- Coverage in areas not serviced by cellular
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
