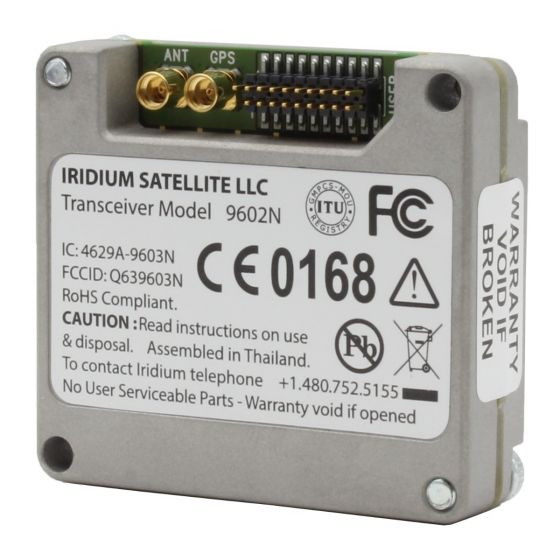

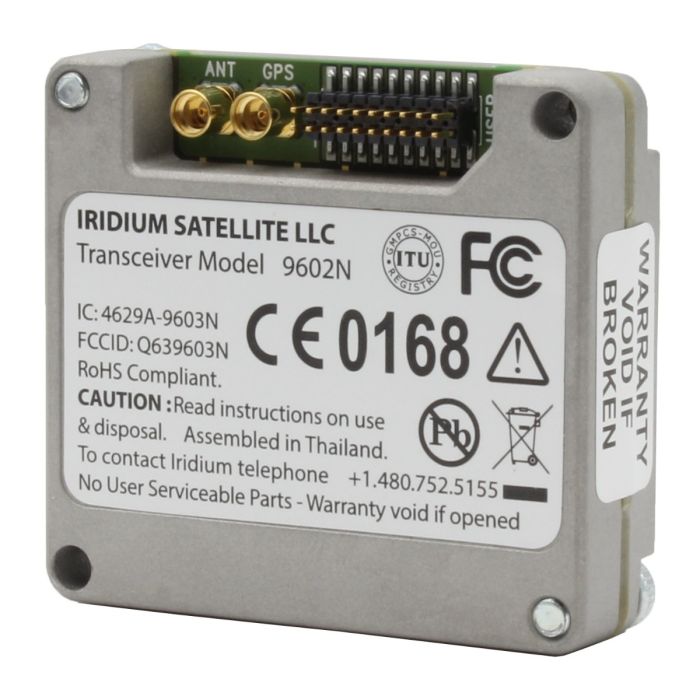

Iridium 9602N SBD Transceiver (4629A-9603N)

Name: Iridium 9602N SBD Transceiver (4629A-9603N)
Brand: IRIDIUM
SKU: Iridium-9602-SBD-Transceiver
Price: 249.99 USD
Availability: InStock

IRIDIUM IoT BROCHURE (PDF)

SEE ALL DOWNLOADS

US$249.99

Buy 5 for US$244.99 each and save 2%
Buy 10 for US$242.49 each and save 3%
Buy 20 for US$237.49 each and save 5%
Buy 50 for US$232.49 each and save 7%
Buy 100 for US$224.99 each and save 10%

Overview

The Iridium 9602N SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.

BRAND:

IRIDIUM

MODEL:

9602N

PART #:

4629A-9603N

ORIGIN:

Thailand

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 3-5 BUSINESS DAYS

Product Code:

Iridium-9602-SBD-Transceiver

The Iridium 9602N SBD Transceiver (4629A-9603N) is a compact and rugged satellite communication device designed for reliable short burst data (SBD) transmission. It provides global coverage, enabling seamless connectivity even in the most remote locations where terrestrial networks are unavailable. Ideal for applications such as asset tracking, remote monitoring, emergency messaging, and data collection in harsh environments, the 9602N offers robust performance, low power consumption, and easy integration.

More Information
HARMONIZED TARIFF NUMBER	85177900
PRODUCT TYPE	SATELLITE M2M
USE TYPE	MARITIME, VEHICULAR
BRAND	IRIDIUM
MODEL	9602N
PART #	4629A-9603N
NETWORK	IRIDIUM
CONSTELLATION	66 SATELLITES
USAGE AREA	100% GLOBAL
SERVICE	IRIDIUM SBD
LENGTH	41 mm
WIDTH	45 mm
DEPTH	13 mm
WEIGHT	30 grams
FREQUENCY	L BAND (1-2 GHz)
APPLICATIONS	ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, PERSONNEL & ASSET TRACKING, REMOTE AUTOMATION & CONTROL
POWER REQUIREMENTS	+5 V +/- 0.5 V
OPERATING TEMPERATURE	-40ºC to 85ºC (-40ºF to 185ºF)
CERTIFICATIONS	CE COMPLIANCE, FCC, RoHS
SHIPS FROM	CALGARY, AB, CANADA

BROCHURES

IRIDIUM IoT BROCHURE

(Size: 2.7 MB)

USER MANUALS

IRIDIUM AT COMMAND REFERENCE

(Size: 1.2 MB)
