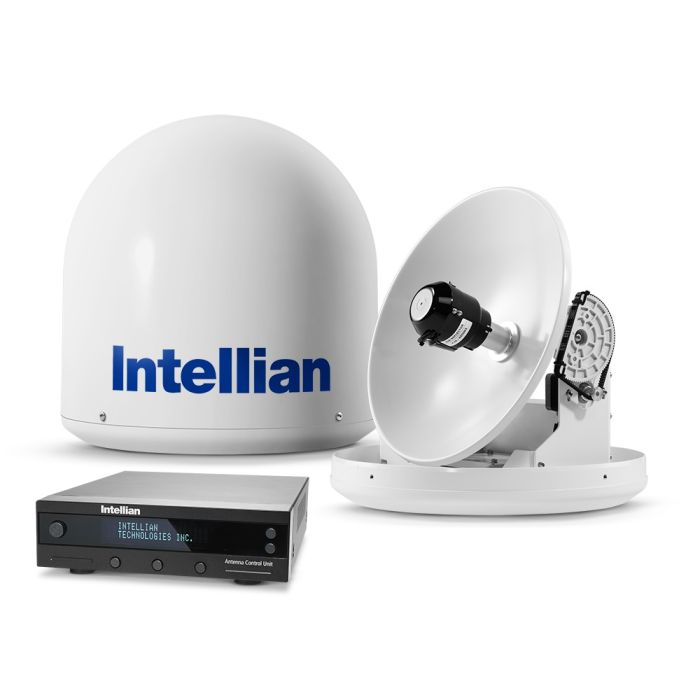

Intellian i2 Marine Satellite TV System w/ MIM for Dish Network and Bell TV (B4-I2DN)
In stock
- BRAND:
- INTELLIAN
- MODEL:
- i2
- PART #:
- B4-I2DN
- Warranty:
- 3 YEARS PARTS 2 YEAR LABOR
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Intellian-i2-System-B3-I2DN
The Intellian i2 Marine Satellite TV System with MIM for Dish Network and Bell TV (B4-I2DN) is a compact and lightweight satellite TV system designed for smaller vessels. It offers a high-performance solution for enjoying your favorite TV programs while at sea.
Key Features:
- Compact Design: Lightweight and small form factor for easy installation on smaller vessels.
- High-Performance Antenna: Provides reliable signal reception and picture quality.
- Automatic Satellite Switching: The Multi-Satellite Interface Module (MIM) enables seamless switching between satellites for Dish Network and Bell TV.
- HD and SD Programming: Supports both high-definition and standard-definition programming.
- Easy Installation and Operation: Simple to install and use.
Benefits:
- Enjoy TV at Sea: Watch your favorite TV shows and movies while cruising.
- Enhanced Entertainment: Improve your onboard entertainment experience.
- Reliable Reception: Ensures stable signal reception, even in challenging marine environments.
Specifications
| SHIPS FROM | IRVINE, CA (USA), SEOUL (SOUTH KOREA), ROTTERDAM (NETHERLANDS) |
|---|---|
| MODEL | i2 |
| PART # | B4-I2DN |
| PRODUCT TYPE | SATELLITE TV |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| BRAND | INTELLIAN |
| NETWORK | BELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK |
| USE TYPE | MARITIME |
| ACCESSORY TYPE | ANTENNA |
| ANTENNA SIZE | 33 cm (13 inch) |
| OPERATING TEMPERATURE | -25Ā°C to 55Ā°C (-13Ā°F to 131Ā°F) |
| STORAGE TEMPERATURE | -40Ā°C to 80Ā°C (-40Ā°F to 176Ā°F) |
| FREQUENCY | Ku BAND |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| WEIGHT | 4,5 kg (9,5 lb) |
| RADOME HEIGHT | 38 cm (15.0 inch) |
| RADOME DIAMETER | 37 cm (14.6 inch) |
| RECEPTION FREQUENCY | Ku-bandļ¼ 10.7 ~ 12.75 GHz |
| POLARIZATION | VERTICAL / HORIZONTAL |
| MINIMUM EIRP | 51 dBW |
| AZIMUTH RANGE | 680Āŗ |
| ELEVATION RANGE | 10Ā° ~ 80Ā° |
| SHIP'S MOTION | Roll Ā±25Āŗ, Pitch Ā±15Āŗ |
| ROLL & PITCH RESPONSE RATE | 60Ā° / sec |
| TURNING RATE | 60Ā° / sec |
| RF OUTPUT | DUAL OUTPUT |
Feature
Intellian i2 Features
Fully Automated System
Automatic Satellite Search and Identification Function
2-axis Stabilization provides high speed tracking
High Performance Antenna
33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
Circular or linear polarization depending on region and LNB selected
Built-in HD module for Ku-band HD TV reception
iQĀ² Quick&Quietā Technology
iQĀ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas
Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU
Automated updates and diagnostics via Aptus
Simple antenna status quick reference
Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
Using the MIM, a master receiver can be selected to control the target satellite
In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home
Interface to External NMEA 0183 GPS Interface
Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time
Compact Size
37cm (14.6 inch) antenna radome diameter
Very light antenna weighs less than 4.5 kg (10 pounds)
Three Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017.
What's included
Whats Included
All Satellite Systems include the following parts as standard
- Antenna & Radome 33 cm (13 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Mounting Template
- Quick Installation Guide
Installation Kit
- ACU Table Mounting Bracket Ć 2EA
- 15 m (49) ft Ć 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) Ć 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) Ć 1EA DC Power Cable
- 1.8 m (6 ft) Ć 1EA PC Serial Cable
- Connectors & Screws
Intellian i2 Coverage Maps
