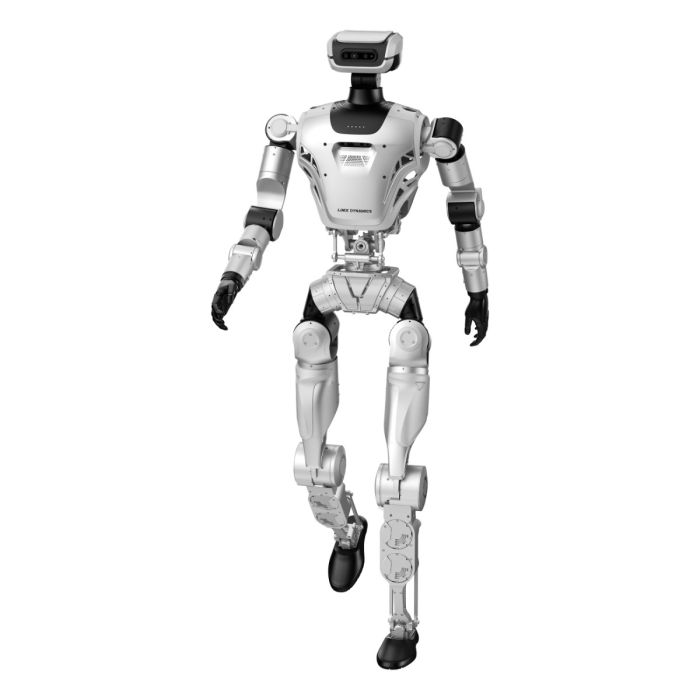

LimX Oli Super Full-Size General Purpose Humanoid Robot

LimX Oli Super Full-Size General Purpose Humanoid Robot

As the “Super” tier, Oli Super emphasizes expanded capability through higher-end perception compute, optional end effectors, and developer tooling designed to support a full development lifecycle from algorithm research and simulation to deployment and field testing. LimX describes the broader Oli architecture as general-purpose, modular, and supported by a development toolchain that includes SDK/APIs for motion control and sensor access.

Design and Features

Human-scale body and kinematics

LimX Oli Super is built around a human-scale humanoid form factor. On LimX’s official specification page, the Oli series is listed at 165 cm (5'5") height with ≤55 kg weight (battery included) for the Lite/EDU/Super set, and the Super configuration is shown with 33 active degrees of freedom (DoF) (compared with 31 DoF in Lite/EDU).

LimX’s product overview also highlights the platform’s full-body kinematic structure, describing a 31-DoF baseline arrangement (head, arms, waist, legs) for the series and emphasizing human-like posture and expressive motion.

Modular end-effectors and “general-purpose” hands

A defining characteristic of the Oli series is its multiple end-effector options, allowing developers to choose grippers or dexterous hands based on the task (research, manipulation, teleoperation, demos). LimX’s spec table lists options that include:

• Parallel two-finger gripper (1 DoF)

• Five-finger dexterous hand (6 DoF)

• Self-developed two-finger gripper (1 DoF)

• Self-developed three-finger dexterous hand (4 DoF)

This modularity is commonly associated with “general-purpose humanoid robot” positioning: the same locomotion base can be paired with different hands to explore grasping, tool use, and object handling without redesigning the entire platform.

Quick-swap battery and modular serviceability

LimX emphasizes quick-swap design in multiple areas—particularly a quick-swap battery design and a quick-swap modular design intended to simplify transport, maintenance, and iterative R&D workflows.
For labs and integrators, quick-swap architecture can reduce downtime between runs (battery swaps) and accelerate iteration when upgrading sensor stacks or compute modules.

Dual compute concept

LimX markets the Oli platform as providing “independent compute for Motion Control and Perception,” describing it as a double-compute setup intended for advanced algorithm research.
This mirrors a common humanoid architecture pattern: time-critical low-level control loops separated from high-level perception and planning workloads.

Technology and Specifications

Mechanical parameters (Oli Super)

From LimX’s official Oli specification page, key published parameters for the series and Super tier include:

• Height: 165 cm (5'5")

• Weight (battery included): ≤55 kg

• Active DoF: 33 (Super)

• Joint DoF breakdown (series baseline): head (2 DoF), single arm (7 DoF), waist (3 DoF), single leg (6 DoF)

LimX also publishes extensive joint motion ranges for key joints (neck, shoulder, elbow, wrist, waist, hip, knee, ankle), supporting simulation fidelity and motion planning work where accurate limits are essential.

Perception and sensors

LimX describes Oli as equipped with an IMU and depth cameras, and designed for integration of external sensors such as LiDAR and additional cameras via abundant electrical interfaces.
In the spec table, the Oli series lists a self-developed IMU (with a 6-axis listing for the Lite/EDU/Super set) alongside entries for head and chest depth cameras and LiDAR integration.

Power and runtime

LimX’s spec page lists:

• Battery capacity: 9,500 mAh

• Battery life: about 1.5 hours (for Super)

• Charger: 58.8V 10A

• Drawer-type battery module (listed with multiple units)

Performance

LimX’s spec page lists:

• Max walking speed: 5 km/h

• Max single-arm load: 3 kg

These figures place Oli Super in the “research platform” category: fast enough for realistic locomotion demonstrations and lab testing, while arm load capacity remains targeted at lightweight manipulation tasks and developer experimentation rather than heavy industrial lifting.

Compute configuration (Super tier)

A central differentiator for Oli Super is the perception compute configuration shown on LimX’s spec page:

• Remote control compute: RK3588 (8G/64G in Super listings)

• Perception compute (Super): NVIDIA Orin NX (157 TOPS) / 16G / 1T

The spec page also references an optional computing backpack configuration (noted with an AGX Orin-class reference in the footnotes), reinforcing the modular approach to scaling compute for higher-end autonomy and perception workloads.

Developer tools and APIs

LimX positions Oli as developer-friendly and includes multiple layers of tooling:

• Python development support

• Modular SDK

• Open upper and lower level APIs

• URDF for sim-to-real

• Support for major simulation platforms (e.g., NVIDIA Isaac Sim, MuJoCo, Gazebo)

On the spec page, LimX also lists developer-oriented interfaces such as:

• Controller API

• Sensor API

• Low-level motion control API (joint and end-effector control)

• High-level motion control API (walking, mobile manipulation, stationary manipulation, teleoperation)

• OTA upgrades and an optional Studio toolset for management, data collection, choreography, and simulation verification.

Third-party reporting echoes this “open interface + toolchain” positioning, describing the Oli line as adopting a modular hardware/software design with an SDK that exposes robot status, sensor data, low-level joint control, and high-level task scheduling.

Applications and Use Cases

Embodied AI and humanoid learning research

Oli Super’s combination of full-body DoF, sensor interfaces, and Orin NX-class perception compute makes it suitable for embodied AI research—including vision-based navigation, whole-body policy learning, imitation learning, and multi-modal perception pipelines. LimX explicitly frames the Oli platform as supporting development from algorithm research to deployment through an evolving toolchain.

Mobile manipulation and teleoperation

With optional dexterous hands and low-/high-level control APIs, Oli Super is commonly aligned with mobile manipulation research: grasping and placing small objects, tool-use prototypes, and teleoperated experiments where the robot’s whole-body posture contributes to stability and reach.

Demonstrations, entertainment, and interactive performance

LimX notes preloaded interactive actions and dance routines, OTA-updatable libraries, and choreography tooling via Studio—supporting performance and demo use cases such as events, exhibitions, and public-facing robotics showcases.

Inspection and “human-scale” indoor operations

LimX’s product page lists application themes including equipment inspection, industrial operations, property management, and emergency response—categories where human-scale mobility and reach can be valuable in structured environments (e.g., facilities, corridors, staged environments).

Advantages / Benefits

High-end configuration within a modular lineup: Oli Super sits at the top of the Lite/EDU/Super range, pairing the same general-purpose humanoid body with expanded capability—most notably 33 active DoF and Orin NX (157 TOPS) perception compute.

Developer-centric stack: LimX emphasizes Python support, modular SDKs, multi-level APIs, URDF availability, and simulation support—features that help teams move from simulation to hardware with fewer integration surprises.

Sensor and interface extensibility: The platform is presented as “comprehensive perception” ready, with depth cameras, IMU, and interfaces intended for LiDAR and additional sensors—supporting research rigs that evolve over time.

Operational convenience: Quick-swap battery and modular design reduce friction during repeated test cycles, demos, and iterative development.

FAQ Section

What is the LimX Oli Super humanoid robot?

LimX Oli Super is the top-tier configuration of the LimX Oli full-size general-purpose humanoid robot line, featuring 33 active DoF and an Orin NX (157 TOPS) perception compute configuration aimed at advanced R&D.

How does LimX Oli Super work?

Oli Super combines a human-scale humanoid body, modular end effectors, depth cameras and IMU sensing, and a developer stack with low-level and high-level motion control APIs. Developers can access controller and sensor data via SDK/APIs and run perception and autonomy workloads on its onboard compute.

Why is LimX Oli Super important?

Oli Super is positioned as a general-purpose humanoid R&D platform that aims to reduce integration effort through modular hardware, simulation support (URDF and major simulators), and developer tooling—helping teams move faster from research prototypes to deployed behaviors.

What are the benefits of LimX Oli Super?

Key benefits include Orin NX (157 TOPS) perception compute, 33 active DoF, modular end-effector options (including dexterous hands), quick-swap battery design, and developer tooling with multi-level motion APIs plus OTA and Studio support.

Summary

The LimX Oli Super Full-Size General Purpose Humanoid Robot represents the highest-capability configuration in the LimX Oli lineup, pairing a human-scale platform with a developer-oriented software stack and modular hardware choices. With official specifications listing 33 active DoF, ≤55 kg weight, 5 km/h walking speed, a 9,500 mAh battery (about 1.5 hours listed runtime), and Orin NX (157 TOPS) perception compute, Oli Super is positioned to support modern embodied AI workflows—spanning simulation, teleoperation, mobile manipulation, and autonomy experimentation—while maintaining a modular design intended to evolve alongside research and application needs.
