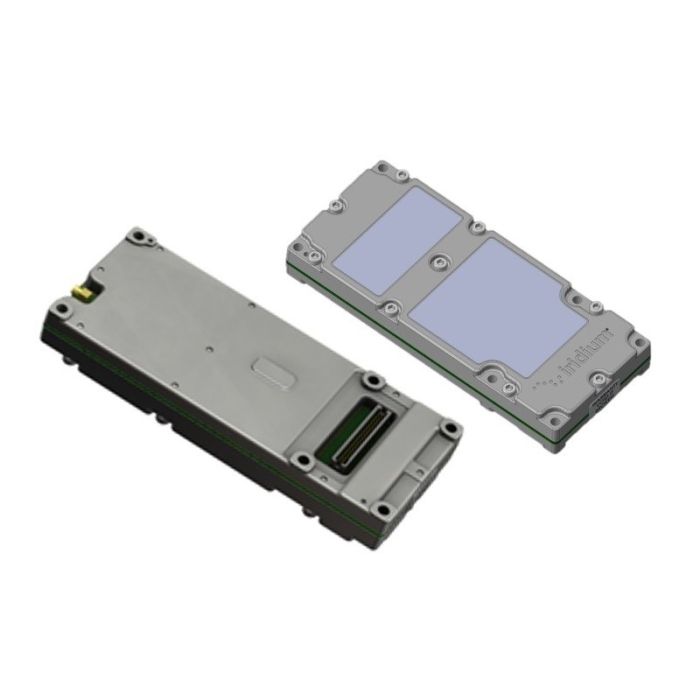

Iridium Certus 9770 Transceiver
In stock
- BRAND:
- IRIDIUM
- MODEL:
- 9770 TRANSCEIVER
- PART #:
- IRIS-ANT-9770
- ORIGIN:
- Denmark
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 7-14 BUSINESS DAYS
- SKU:
- Iridium-Certus-9770-Transceiver
The Iridium Certus 9770 Transceiver is a cutting-edge device that delivers reliable, high-speed satellite connectivity for a wide range of applications. This compact and powerful transceiver leverages Iridium's global L-band network to provide seamless communication in even the most remote and challenging environments. With its ability to support simultaneous voice and data services, the Iridium Certus 9770 is ideal for applications such as unmanned aerial vehicles (UAVs), IoT devices, and personal communication devices.
Specifications
| MODEL | 9770 TRANSCEIVER |
|---|---|
| PART # | IRIS-ANT-9770 |
| PRODUCT TYPE | SATELLITE M2M |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM CERTUS LAND, IRIDIUM CERTUS MARITIME |
| USE TYPE | AVIATION, FIXED, HANDHELD, MARITIME, PORTABLE, VEHICULAR |
| OPERATING TEMPERATURE | -40°C to 70°C |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | LONE WORKER COMMUNICATIONS, REMOTE MONITORING, SCADA, VESSEL & FLEET MANAGEMENT |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| HARMONIZED TARIFF NUMBER | 85177900 |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 140 mm (5.51") |
| WIDTH | 60 mm (2.36") |
| DEPTH | 16 mm |
| WEIGHT | 185 grams (6.53 oz) |
Feature
Iridium Certus 9770 Features
Midband Speeds of 22 Kbps Transmit, 88 Kbps Receive
Simultaneous Voice and IP Data
Two (2) High-quality Iridium Certus® Voice Circuits Configured as Either Pre-paid or Post-paid
Highly Mobile and Scalable
Multi-Service Connectivity
Truly Global Coverage
Low Latency
Uncompromising Reliability
Iridium Global Coverage Map
Iridium delivers essential communications services to and from remote areas where no other form of communication is available. Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.
At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
