Intellian v65 VSAT Marine Antenna System (V4-650)

US$21,290.00
Based on a USD price of $21,290.00 and today's exchange rate.
Overview

The world's first and only 60cm class antenna capable of top RF performance in either Ku-band or Ka-band.

BRAND:
INTELLIAN
MODEL:
v65
PART #:
V4-650
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-V65-System-V4-650

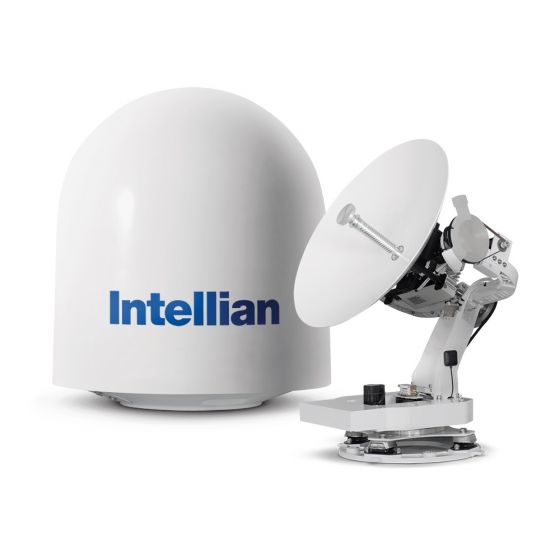

Intellian v65 VSAT Marine Antenna System (VG-650)
Best RF Performance
The v65's high efficiency reflector and feed design deliver dramatically improved gain performance for increased fidelity of service and improved overall link margin. Service providers can now leverage the superior performance to access new market segments by building new, attractive service plans offering truly global coverage, higher throughput, and larger sized data plans. Live network testing shows the v65 offers an average of 1.2 dB/k improvement in G/T over any other system in its class, and can achieve download speeds up to 100Mbps over high throughput satellites, such as Intelsat's EPIC constellation.

Built for Scale
The rate of adoption is increasing for maritime satellite communications. While this is a positive development for the industry, the challenge is keeping up with demand. At Intellian we understand that our customers are not earning revenue until the system is installed and activated. The v65 aims to solve this problem through a few key features.

The product is shipped without any stow brackets on the pedestal, and the RF connectors are now accessible from a small external panel, meaning there is no longer any need to remove THE radome during pre-installation testing or during installation itself. Saving time through both of these processes enhances the efficiency of your business and gets you to activation far more quickly. The v65 is also capable of supporting automated commissioning once it has been properly integrated with a given network.

Frequency Flexible
In today's market, there are a number of barriers to adoption. As satellite technology evolves more and more quickly, users are faced with important technology decisions, such as to move in the direction of next generation Ka-band services, or newly launched Ku-band offerings. Many express concerns over being stuck one way or the other based on hardware limitations.

The v65 is the world's first and only 60cm class antenna system which can operate in both Ku- and Ka-bands through a simple conversion process. Using one of Intellian's signature on-board conversion kits, users can swap out key RF components in as little as 10 minutes to move from one frequency to another, delivering maximum performance in any geography and ensuring a Futureproof communications solution for end users all over the world.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARINE
BRANDINTELLIAN
MODELv65
PART #V4-650
NETWORKVSAT
ANTENNA SIZE65 cm (25.6 inch)
WEIGHT59.5 kg (131.2 lbs)
BANDKa BAND, Ku BAND
RADOME HEIGHT104 cm (40.9 inch)
RADOME DIAMETER90 cm (35.5 inch)
POLARIZATIONLinear, Cross-pol only
AZIMUTH RANGEUnlimited
ELEVATION RANGE-20° ~ 115°
CROSS-LEVEL RANGE±37°
File Downloads
BROCHURES
pdf
 (Size: 329.7 KB)
