| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | VEHICULAR |
| BRAND | COBHAM |

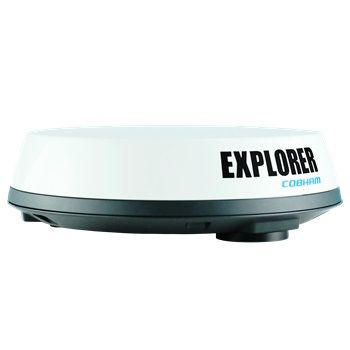

| MODEL | EXPLORER 323 |
| PART # | 403723A-00500 |
| NETWORK | INMARSAT |
| CONSTELLATION | 3 SATELLITES |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT BGAN |
| FEATURES | PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX) |
| DATA SPEED | UP TO 448 / 464 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps |
| HEIGHT | 97 mm (3,82 pouces) |
| DIAMETER | 321 mm (12,7 mm) |
| WEIGHT | 3,6 kg (7,9 livres) |
| FREQUENCY | L BAND (1-2 GHz) |
| INGRESS PROTECTION | IP 66 |
| ACCESSORY TYPE | TERMINAL |
| OTHER DATA INTERFACES | 2X ETHERNET |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| CERTIFICATIONS | CE COMPLIANCE, FCC, GMPCS |
| SUPPORTED LANGUAGES | ENGLISH, CHINESE, FRENCH, GERMAN, PORTUGUESE, RUSSIAN, SPANISH |
Included in system
- Fully integrated Antenna and Terminal
- Color: White
- Hybrid cable for 12/24V DC power and Ethernet (6m / 19.7ft)
- Quick Start Guide
- Drilling template for mounting
Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
