| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | VEHICULAR |
| BRAND | COBHAM |
| MODEL | EXPLORER 325 |
| PART # | 403721A-00502 |
| NETWORK | INMARSAT |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT BGAN |
| FEATURES | PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX) |
| DATA SPEED | UP TO 240 / 384 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps, 128 kbps |
| FREQUENCY | L BAND (1-2 GHz) |
| INGRESS PROTECTION | IP 31 (TERMINAL), IP 56 (ANTENNA) |
| ACCESSORY TYPE | TERMINAL |
| OTHER DATA INTERFACES | 2X ETHERNET |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| SURVIVAL TEMPERATURE | -40° to 80°C (-40° to 176°F) |
| CERTIFICATIONS | INMARSAT LAND CLASS 11 TYPE APPROVAL (VEHICULAR), CE COMPLIANCE, FCC, GMPCS |
| SUPPORTED LANGUAGES | ENGLISH, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH |

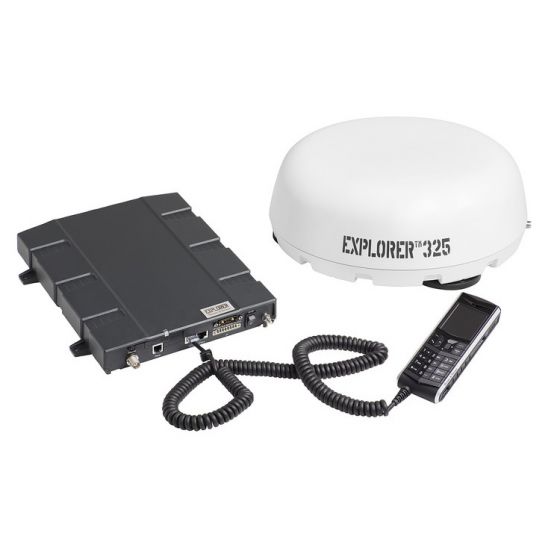

Included in system
1. Fully Integrated Auto-Tracking Antenna
- Color: White
- Built-in magnetic mounts for antenna mounting
2. EXPLORER Land Vehicular Transceiver.
- Standard Ethernet Cable (2m/6.6ft)
- Getting started kit - Quick Start Guide, CD with manuals
- 12/24VDC Input Cable
- Antenna Cable, Coax w/ TNC connector (2.7m/8.8ft)
3. Thrane IP handset wired with Cradle and Coiled Cable.
Specific for the 403721A-00520 variant:
- GNSS: Only GPS - no Glonass, Beidou or Galileo support
- Alphasat: Works in EMEA but do not support the extended L-band frequencies under Alphasat
Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
