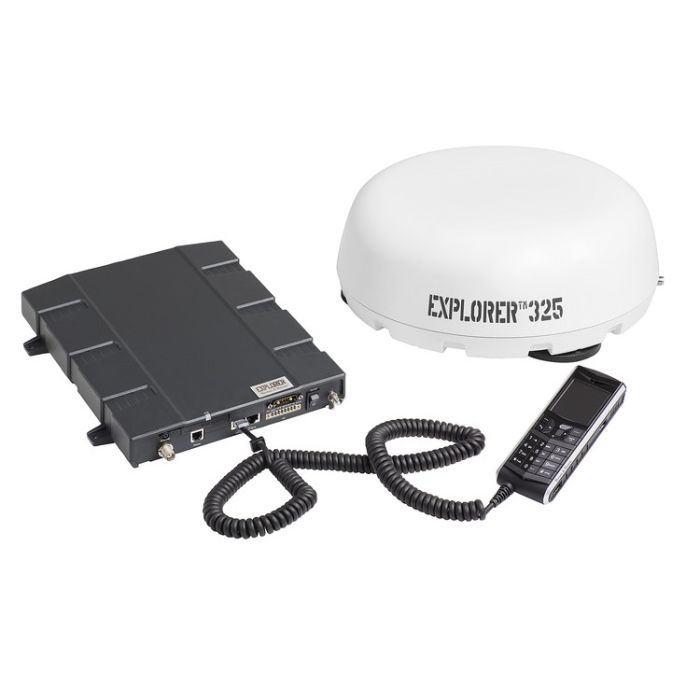

Cobham BGAN Explorer 325 Vehicular In Motion Satellite Internet System (403721A-00535)
BGAN TERMINALS | PLANS | ACCESSORIES | RENTALS | SUPPORT
In stock
- BRAND:
- COBHAM
- MODEL:
- EXPLORER 325
- PART #:
- 403721A-00535
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Thrane-BGAN-Explorer-325
The Cobham BGAN Explorer 325 (model 403721A-00502) is a ruggedized, vehicular, in-motion satellite internet system designed for reliable broadband connectivity while on the move. This system provides access to Inmarsat's Broadband Global Area Network (BGAN) service, enabling seamless internet access, voice calls, and data transfer from vehicles traveling anywhere in the world. Ideal for government, military, emergency response, media, and commercial applications requiring constant connectivity in mobile environments, the Explorer 325 delivers dependable communication even in challenging terrains and conditions.
Key Features:
- Vehicular in-motion system: Maintains connectivity while the vehicle is moving.
- Ruggedized design: Withstands harsh environments and vehicle vibrations.
- Global coverage: Access to Inmarsat's BGAN network for worldwide connectivity.
- Broadband speeds: Supports data-intensive applications.
- Simultaneous voice and data: Make calls and use internet applications concurrently.
- [Add specific technical details if available, e.g., data rates, antenna type, weight, power requirements, interfaces (Wi-Fi, Ethernet), GPS integration, etc.]
Benefits:
- Continuous connectivity: Stay connected while on the move.
- High-speed internet: Access broadband internet for data-intensive tasks.
- Global reach: Communicate from virtually anywhere.
- Reliable performance: Dependable connectivity even in challenging conditions.
- [Add other specific benefits, like ease of integration, remote management, etc.]
Specifications
| MODEL | EXPLORER 325 |
|---|---|
| PART # | 403721A-00535 |
| GPU | 200 TOPS |
| PRODUCT TYPE | SATELLITE INTERNET |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| BRAND | COBHAM |
| NETWORK | INMARSAT |
| SERVICE | INMARSAT BGAN |
| USE TYPE | VEHICULAR |
| ACCESSORY TYPE | TERMINAL |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| SURVIVAL TEMPERATURE | -40° to 80°C (-40° to 176°F) |
| OTHER DATA INTERFACES | 2X ETHERNET |
| DATA SPEED | UP TO 240 / 384 kbps (SEND / RECEIVE) |
| STREAMING IP | 32 kbps, 64 kbps, 128 kbps |
| SUPPORTED LANGUAGES | ENGLISH, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH |
| INGRESS PROTECTION | IP 31 (TERMINAL), IP 56 (ANTENNA) |
| FREQUENCY | L BAND (1-2 GHz) |
| FEATURES | PHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VIDEO STREAMING, FoIP (FAX) |
| CERTIFICATIONS | INMARSAT LAND CLASS 11 TYPE APPROVAL (VEHICULAR), CE COMPLIANCE, FCC, GMPCS |
What's included
Included in system
1. Fully Integrated Auto-Tracking Antenna
- Color: White
- Built-in magnetic mounts for antenna mounting
2. EXPLORER Land Vehicular Transceiver.
- Standard Ethernet Cable (2m/6.6ft)
- Getting started kit - Quick Start Guide, CD with manuals
- 12/24VDC Input Cable
- Antenna Cable, Coax w/ TNC connector (2.7m/8.8ft)
Inmarsat BGAN Coverage Map
This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
