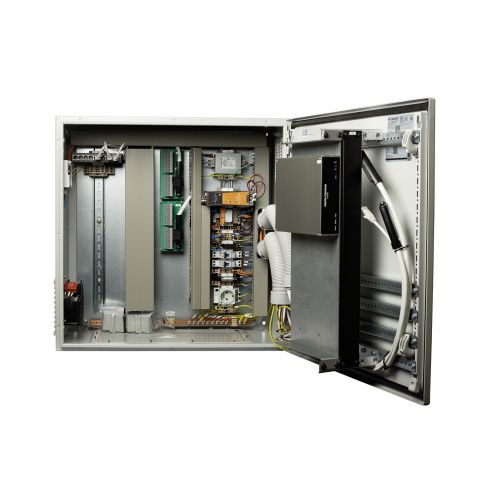

ZENITEL ICX-CAB-IP2W Compact Cabinet For ICX, IP Over Two-Wire, AC-AC (1150100017)

• Tailored to meet maritime specifications
• Typed approved solution for two way communication, talkback, public address and general alarm for all types of vessels
• Extensive set of features for PABX and emergency communication
• Supports Zenitel's integrated PA and GA solution
• Wide range of audio terminals and signal units
• Prepared for integration to i.e. two-way radio or DECT
• Installation friendly with easy access to all terminals
• Remote management and supervision using IP and Web technologies
• Redundant power input with switchover

The ICX-CAB-IP2W compact cabinet is specially designed for use onboard ships. The system is based on the ICX-AlphaCom communication platform with an extensive feature set. The ICX-Alphacom intelligent communication system supports the Zenitel integrated PA and GA solution.

The ICX-CAB-IP2W is prepared for one 24 port or 48 port NV-PL-0xx IP over two-wire switch, which can provide IP communication as well as PoE power over two-wire UTP cables at a distance of up to 365 m.

The ICX-Alphacom solution supports a wide range of IP and wireless communication terminals made for the offshore environment. The intercom terminals are type approved as integrated PA, GA, telephone and talkback units. IP DECT base stations connect directly to the exchange over IP providing a very cost efficient solution to deploy a wireless network onboard. The ICX-CAB-IP2W can be customized with a set of option packages. These include:

• FXO gateway (4 channels)
• 4G telephone gateway
• IP DECT system
• Public address zone switching
• Customized directory programming.
