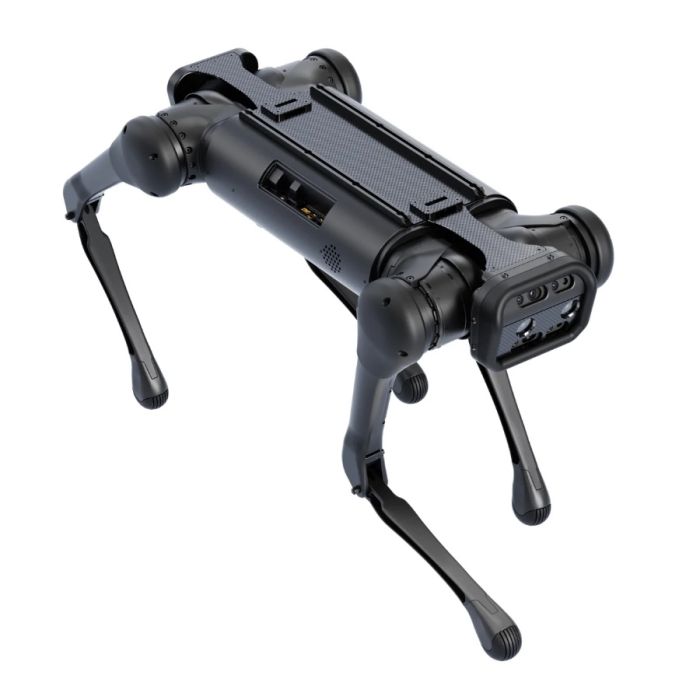

Unitree Aliengo Quadruped Robot

Unitree Aliengo Quadruped Robot

Meet the Unitree Aliengo, a cutting-edge quadruped robot designed for versatility and performance. This dynamic robot boasts exceptional agility, robust build, and advanced intelligence, making it suitable for various applications, from research and development to industrial inspection and exploration.

Design and Features

Mechanical architecture

Aliengo follows the typical quadruped layout: a central body housing batteries, control electronics, and mounting interfaces, with four articulated legs providing dynamic stability. Industrial quadrupeds are commonly built around:

• High-torque electric actuators (often integrated into compact joint modules)

• Multi-joint legs enabling stance adjustment and step placement

• A rigid body structure for payload mounting (e.g., LiDAR, depth cameras, IMUs, compute boxes)

While exact joint-level specifications may vary by configuration and revision, commercial technical summaries for Aliengo generally emphasize its industrial positioning, legged mobility, and compatibility with sensor payloads and onboard compute options.

Mobility and operational modes

Aliengo’s user documentation describes multiple operating modes and gait behaviors, including a “sport mode” variant intended for more agile movement and stair/step handling (with documentation referencing step heights on the order of ~16–18 cm in a specific mode description). This kind of mode structure is typical of quadrupeds that expose both conservative “safe” behaviors and higher-performance behaviors for controlled environments.

Integration and expandability

A key design goal for research quadrupeds is integration—the ability to mount sensors and run external autonomy stacks. Aliengo is commonly associated with developer tooling and SDK-based access patterns in the Unitree ecosystem, where researchers integrate low-level state access with higher-level control frameworks. Open-source developer resources in the broader Unitree SDK ecosystem are widely used to interface with Unitree legged platforms (including Aliengo in many research deployments).

Technology and Specifications

Locomotion control and balance

Quadruped locomotion typically relies on a layered stack:

• State estimation (fusing IMU + joint encoders, optionally cameras/LiDAR)

• Gait generation (stance/swing timing and foothold planning)

• Whole-body control (tracking desired body motion while respecting contact constraints)

Aliengo has been used as a real-world test platform for advanced estimation and learning-based locomotion approaches in academic work. For example, the MUSE state-estimation paper reports testing on a Unitree Aliengo robot and discusses robust estimation under challenging conditions. Other research on simulation-to-reality locomotion also reports deploying controllers on Unitree A1 and Aliengo platforms in real environments.

Sensor and compute workflows

Aliengo deployments often include combinations of:

• IMU + joint encoders for proprioception

• Depth cameras and/or LiDAR for terrain awareness and mapping

• Onboard compute (embedded GPU/CPU modules) for autonomy tasks

These combinations are consistent with how modern quadrupeds are used in navigation, inspection, and robotics research—where perception and state estimation are central to robust movement.

Representative performance metrics (public-facing)

Public product materials and reseller summaries commonly cite metrics such as:

• Top speed: up to ~1.5 m/s (vendor listing)

• Battery endurance: reseller summaries may cite multi-hour operation in some configurations (values vary by payload and workload)

Because quadruped runtime and performance depend heavily on payload, terrain, gait selection, and compute load, published figures should be treated as indicative rather than absolute for every deployment.

Applications and Use Cases

Robotics research and university labs

Aliengo is frequently used for:

• Locomotion research (gaits, disturbance rejection, stair climbing)

• State estimation benchmarking and sensor fusion experiments

• Reinforcement learning and sim-to-real transfer validation

• Field robotics prototypes that require legged mobility

Industrial prototyping and inspection pilots

Industrial quadrupeds are often evaluated for:

• Facility inspection (structured environments with stairs/ramps)

• Remote sensing payload trials (thermal cameras, LiDAR, gas sensors)

• Security and patrol proof-of-concepts in controlled sites

Education and workforce training

In training contexts, legged robots provide a tangible platform for:

• Controls engineering (PID/MPC concepts, whole-body control)

• Perception pipelines (SLAM, obstacle detection)

• Systems integration (power, compute, sensor mounting)

Advantages / Benefits

• Terrain adaptability: Legs can handle curbs, steps, and uneven ground better than many wheeled bases.

• Research relevance: Aliengo appears in peer-reviewed robotics work as a real-world platform for estimation and learning-based locomotion.

• Integration potential: Quadrupeds in this class are designed to host sensors and onboard compute for autonomy experiments.

• Mode-based operation: Documentation describing distinct modes supports safer testing and progressive capability unlocking.

FAQ Section

What is the Unitree Aliengo Quadruped Robot?

The Unitree Aliengo is an industrial-grade quadruped (four-legged) mobile robot designed for research, prototyping, and advanced robotics education, enabling legged locomotion over uneven terrain and steps.

How does the Unitree Aliengo work?

Aliengo uses electrically actuated leg joints coordinated by onboard control software that stabilizes the body, generates gaits, and places feet in sequence. In many deployments, onboard sensors (IMU and encoders, plus optional cameras/LiDAR) support state estimation and navigation pipelines.

Why is the Unitree Aliengo important?

Aliengo is important because it provides a real-world platform for testing legged locomotion, sensor fusion/state estimation, and learning-based control in conditions that challenge wheeled robots. It has been used in published research evaluating advanced estimators and locomotion methods.

What are the benefits of the Unitree Aliengo?

Common benefits include improved mobility over uneven terrain, support for sensor and compute integration, and suitability for research into locomotion and autonomy. Documentation also indicates structured operating modes that can help teams test progressively and safely.

Summary

The Unitree Aliengo Quadruped Robot is an industrial-grade legged robotics platform used for advanced mobility, autonomy prototyping, and research-grade experimentation. Its quadruped design supports traversal of steps and uneven terrain, while published documentation and research usage highlight its role in modern legged locomotion and state-estimation development workflows.

Key Features:

• Agile Locomotion: Aliengo's four-legged design allows for dynamic movement across diverse terrains, including stairs, uneven surfaces, and even challenging obstacles. Its impressive balance and stability enable it to navigate complex environments with ease.
• owerful and Durable: Built with high-performance actuators and a rugged frame, Aliengo is both powerful and durable. It can carry substantial loads and withstand demanding operating conditions.
• Intelligent Control System: Equipped with a sophisticated control system, Aliengo integrates advanced algorithms for motion planning, perception, and control. This allows for autonomous navigation and intelligent decision-making.
• Modular Design: The robot's modular design facilitates customization and upgrades, ensuring adaptability to specific needs and future advancements.
• Multiple Communication Interfaces: Aliengo supports various communication interfaces, allowing for seamless integration with other systems and devices.

Applications:

• Research and Development: Explore advanced robotics concepts, AI algorithms, and quadruped locomotion.
• Inspection and Monitoring: Conduct inspections in hazardous or hard-to-reach areas, improving safety and efficiency.
• Search and Rescue: Assist in search and rescue operations, navigating challenging terrains and providing valuable information.
• Security and Surveillance: Patrol and monitor designated areas, enhancing security and deterring potential threats.
• Education and Training: Provide hands-on learning experiences in robotics, engineering, and computer science.
