| PRODUCT TYPE | SATELLITE PHONE, SATELLITE PTT |
|---|---|
| USE TYPE | HANDHELD |
| BRAND | IRIDIUM |

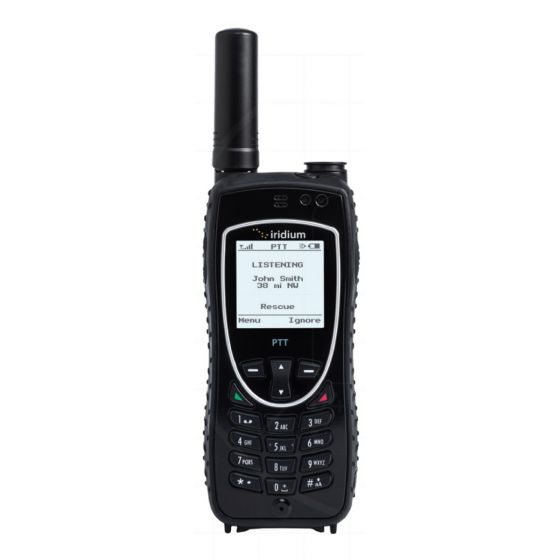

| MODEL | 9575 PTT |
| PART # | FPKT1401 |
| NETWORK | IRIDIUM |
| CONSTELLATION | 66 SATELLITES |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM VOICE, IRIDIUM PTT |
| FEATURES | PHONE, TEXT MESSAGING, GPS, SOS |
| DATA SPEED | UP TO 2.4 kbps (SEND / RECEIVE) |
| LENGTH | 140 mm (5.5") |
| WIDTH | 60 mm (2.36") |
| DEPTH | 32 mm (1.26") |
| WEIGHT | 268 grams (9.45 oz) |
| FREQUENCY | L BAND (1-2 GHz) |
| INGRESS PROTECTION | IP 65 |
| ACCESSORY TYPE | HANDSET |
| TALK TIME | UP TO 6.5 HOURS |
| STANDBY TIME | UP TO 54 HOURS |
| OPERATING TEMPERATURE | -10°C to 55°C (14°F - 131°F) |
| CERTIFICATIONS | IRIDIUM CERTIFIED, FCC, INDUSTRY CANADA |
| SUPPORTED LANGUAGES | ENGLISH, FRENCH, SPANISH |
Iridium 9575 PTT Push To Talk Features
- Everything offered within the Iridium Extreme® plus push-to-talk functionality
- Global PTT capabilities and configurable talkgroups
- A reinforced PTT button
- A high audio loudspeaker
- Enhanced SMS and email messaging capability
- GPS-enabled location-based services
- SOS access in Phone Mode
- Phone Mode battery duration: standby up to (54) hours; talk time up to (6.5) hours
- PTT Mode battery duration: standby up to (16.5) hours; Talk time up to (5) hours
What’s in the Box?
- Iridium Extreme PTT Device
- High Capacity Battery
- Travel Charger with International Adapters
- Car Charger
- Leather Case
- USB data Cable
- User Manual
- Accessory Adapters (2x)
- Magnetic Vehicle-mount Antenna with 5’ Cable
- Hands-free Earpiece with Microphone
Iridium Push To Talk (PTT) Global Coverage Map
Iridium delivers essential communications services to and from remote areas where no other form of communication is available. Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.
At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
