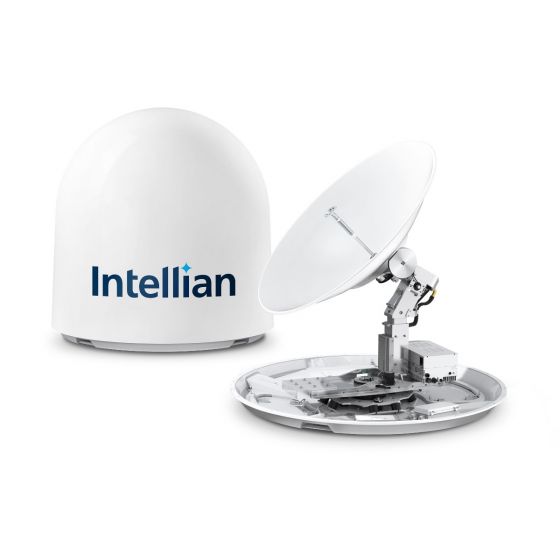

Intellian v150NX with 1.5m reflector incl. PLL LNB, w/o BUC (V5-15-U2)
The v150NX is the world’s first and only Ku- to Ka-band convertible GEO/MEO/LEO-ready VSAT antenna system. This dual-band antenna can operate on Ku- and Ka- bands simply by switching the RF module, available as a conversion kit. The high performance radome is optimized for operation in both Ku- and Ka-band, supporting current and future satellite constellations.
Future Proof for GEO/MEO/LEO Satellite Tracking
The v150NX is ready for the future. Designed with the world’s most accurate satellite tracking performance with our proven tracking algorithm covering GSO and NGSO constellations.
High Power BUC Option
Intellian’s highly efficient design delivers the best RF performance, enabling higher data rates and global operation. Combined with BUC power options up to 200W for maximum throughput. The v150NX is the most powerful antenna system available in single crate for the oil & gas industry, and cruise markets.
Fiber Optic Connection
Fiber optic solution is provided using our extensive fiber optical experience, resulting in minimal signal loss regardless of cable length. Providing a more efficient cost-effective solution on larger installations.
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | MARITIME |
| BRAND | INTELLIAN |
| MODEL | v150NX |
| PART # | V5-15-U2 |
| WEIGHT | 270 KG |
| ACCESSORY TYPE | SYSTEM |
| SHIPS FROM | IRVINE, CA (USA), SEOUL (SOUTH KOREA), ROTTERDAM (NETHERLANDS) |
