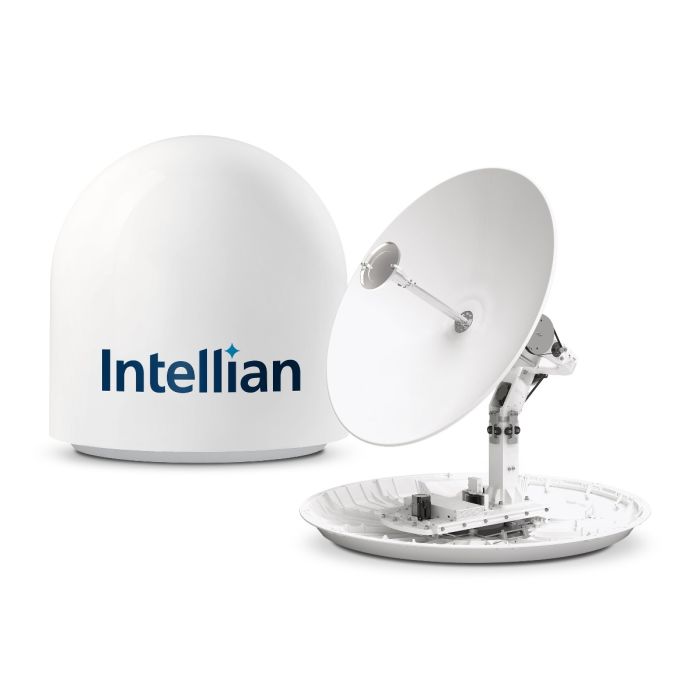

    Intellian s100N 1M HD Directv & Worldview Satellite Tv Antenna System In V100nx-T100n Matching Dome Including Multi-Switch Module (T4-107BT3)
    Add to Wish List Add to Compare

    Intellian s100N 1M HD Directv & Worldview Satellite Tv Antenna System In V100nx-T100n Matching Dome Including Multi-Switch Module (T4-107BT3)

    US$31,995.00 US$25,596.00
    Overview

    1.09m (42.9 inches) reflector WorldView™ TV system with dedicated support for DIRECTV UHD.

    BRAND:
    INTELLIAN
    MODEL:
    s100N
    PART #:
    T4-107BT3
    ORIGIN:
    South Korea
    Stock Status:
    In stock
    AVAILABILITY:
    USUALLY SHIPS IN 3-5 BUSINESS DAYS
    Product Code:
    Intellian-T4-107BT3
    +
    -
    Intellian s100N 1M HD Directv & Worldview Satellite Tv Antenna System In V100nx-T100n Matching Dome Including Multi-Switch Module (T4-107BT3)
    The s100N provides outstanding performance with a 1m reflector and simultaneous DirecTV reception. Intellian’s WorldView™ Trio LNB™, with its triple feed horn, provides simultaneous reception of DIRECTV® satellites: two HD Ka-band (99°W/103°W) satellites and one Ku-band (101°W) satellite. The LNB receives Ku-band TV service around the globe, providing a complete HD entertainment experience at sea.

    Television wherever you are
    The user can select the desired TV programming from the enhanced satellite tracking library of worldwide TV satellites divided in geographical regions. A selection of TV satellites can be listed as favorites for quick access via AptusNTV or the ACU front panel. New TV satellites can easily be added to the library via the AptusNTV dashboard.

    Unlimited azimuth range
    With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes. The solution eliminates the wait for the antenna to unwrap the cable once its length is reached. Never again miss a goal or touchdown of your favorite team.

    Redesigned Quattro WLNB
    The new WLNB has a dedicated output for satellite tracking on all polarizations and (hi and low) frequency bands. The new satellite tracking tuner supports the latest DVB-S2X broadcast standard already being utilized by emerging satellite TV providers. The superior design of the s100N antenna ensures that performance and flexibility are increased with its Ku-Ka-band tuned radome and reflector.

    Matching dome solution
    The new s-Series antennas are fitted with radomes that match our NX Satellite Communication antennas for onboard aesthetics.

    New NX-based antenna design
    The pedestal, motor/encoder and modular antenna control are based on the reliable NX (VSAT) platform. While the software is identical, majority of the hardware on the new TVRO t-s and s-series is spare parts are interchangeable as well. Sharing common modules across Intellian’s new TVRO series, greatly reduces the number of spare parts required.

    AptusNTV
    AptusNTV is the new intuitive dashboard for the new TVRO t- and s-series. The enhanced satellite tracking library and the 7-step installation wizard makes the antenna easy-to-install, configure and operate. The ACU has the option for Wi-Fi access to configure and operate the antenna from a PC, tablet or smartphone.
    More Information
    PRODUCT TYPESATELLITE TV
    USE TYPEMARITIME
    BRANDINTELLIAN
    MODELs100N
    PART #T4-107BT3
    NETWORKDIRECTV
    WEIGHT105 kg (231.5 lbs)
    ACCESSORY TYPESYSTEM
    Intellian S100n 1M HD Directv & Worldview Satellite Tv Antenna System In V100nx-T100n Matching Dome Including Multi-Switch Module (T4-107BT3)
