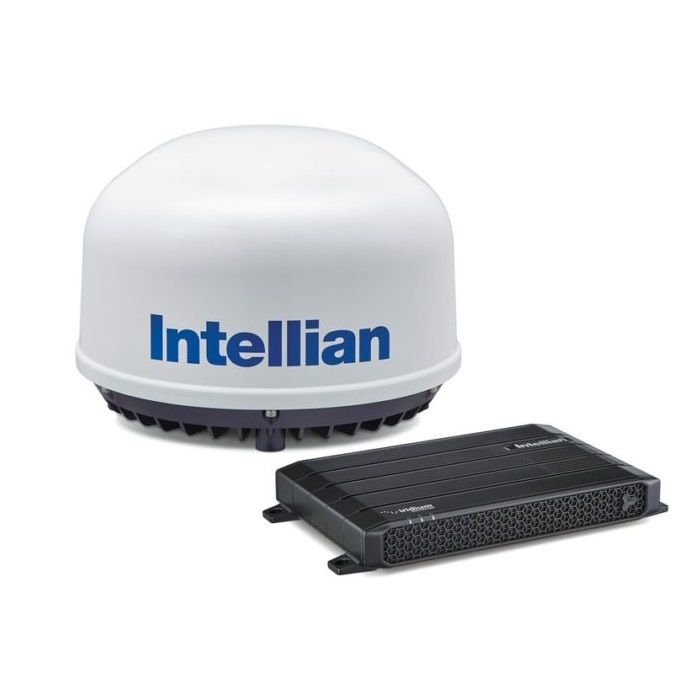

Intellian C700 Iridium Certus Marine Satellite Internet System (C1-70-A00S)
The Intellian C700 maritime terminal utilizes the Iridium network of 66 Low-Earth Orbit (LEO) satellites, providing truly global (pole-to-pole) communication. Using the Iridium Certus service, the C700 provides three independent high-quality voice lines with low latency.
With its best-in-class RF performance, the C700 provides uplink speeds of 352 kbps and downlink speeds of 704 kbps by default, with equally impressive low-elevation-angle RF efficiency, thanks to its unique 12-patch phased array antenna technology. The advanced performance of the C700 provides customers across all markets the flexibility to deploy the C700 as the primary communication antenna or as a companion to a VSAT system for seamless redundancy.
The All-in-One terminal offers ease-of-use and feature-rich functions such as built-in WAN port, Soft PABX enables connection of up to 16 SIP phones, built-in firewall enhances cyber security, and the built-in Wi-Fi provides easy internet access. Also, the powerful APIs offer full integration with Smart boxes and enable remote management.
Since the C700 uses a resilient and reliable solid-state antenna technology, scheduled maintenance is not required for the +10-year operational lifetime of the C700.
| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | MARITIME |
| BRAND | INTELLIAN |
| MODEL | C700 |
| PART # | C1-70-A00S |
| NETWORK | IRIDIUM |
| CONSTELLATION | 66 SATELLITES |
| USAGE AREA | 100% GLOBAL |
| SERVICE | IRIDIUM CERTUS MARITIME |
| FEATURES | INTERNET, IRIDIUM CERTIFIED |
| FREQUENCY | L BAND (1-2 GHz) |
| ACCESSORY TYPE | ANTENNA |
| RADOME HEIGHT | 151.0 cm (59.63 inch) |
| RADOME DIAMETER | 138 cm (54.3 inch) |
| CERTIFICATIONS | IRIDIUM CERTIFIED |
Intellian C700 Features
Iridium Global Coverage Map
Iridium delivers essential communications services to and from remote areas where no other form of communication is available. Powered by a uniquely sophisticated global constellation of 66 cross-linked Low-Earth Orbit (LEO) satellites, the Iridium® network provides high-quality voice and data connections over the planet’s entire surface, including across airways, oceans, and polar regions. Together with its ecosystem of partner companies, Iridium delivers an innovative and rich portfolio of reliable solutions for markets that require truly global communications.
At only 780 kilometers from the Earth, the proximity of Iridium’s LEO network means pole-to-pole coverage, a shorter transmission path, stronger signals, lower latency, and shorter registration time than with GEO satellites. In space, each Iridium satellite is linked to up to four others creating a dynamic network that routes traffic among satellites to ensure global coverage, even where traditional local systems are unavailable.
