| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | MARITIME |
| BRAND | COBHAM |
| MODEL | SAILOR 900 |
| PART # | 407090D-00501 |
| NETWORK | VSAT |
| USAGE AREA | REGIONAL - SEE COVERAGE MAP |
| ANTENNA SIZE | 103 cm (41 inch) |
| WEIGHT | 126,5 kg. / 279 livres |
| FREQUENCY | Ka BAND |
| ACCESSORY TYPE | ANTENNA |
| RADOME HEIGHT | 150.0 cm (58.9 inch) |
| RADOME DIAMETER | 130 cm (51.3 inch) |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
INCLUDED IN SYSTEM

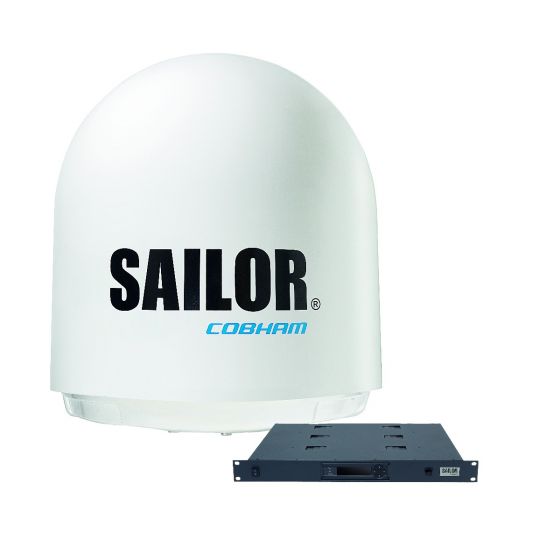

- 407009B-00501 Above Deck Unit (ADU), incl. 103cm reflector, 8W BUC, 2x Multi-Band LNBs, OMT, Diplexer, Mounting Accessories.
- 407016C-00505 Antenna Control Unit (ACU) with AC Power input for 19" rack mounting (1U).
- User & Installation Manual.
- AC Power cord
- NMEA Multi-plug.
- 2x 1m 75 Ohm coax cable TX/RX ACU-VMU.
- Ethernet cable.
