| PRODUCT TYPE | SATELLITE INTERNET |
|---|---|
| USE TYPE | VEHICULAR |
| BRAND | COBHAM |
| MODEL | EXPLORER 8100 |
| PART # | 408157B-50551 |
| NETWORK | INMARSAT |
| USAGE AREA | GLOBAL (EXCEPT POLAR REGIONS) |
| SERVICE | INMARSAT GX |
| ANTENNA SIZE | 100 cm |
| FREQUENCY | Ka BAND |
| ACCESSORY TYPE | ANTENNA |
| OPERATING TEMPERATURE | -25°C to 55°C (-13°F to 131°F) |
| SURVIVAL TEMPERATURE | -40° to 80°C (-40° to 176°F) |

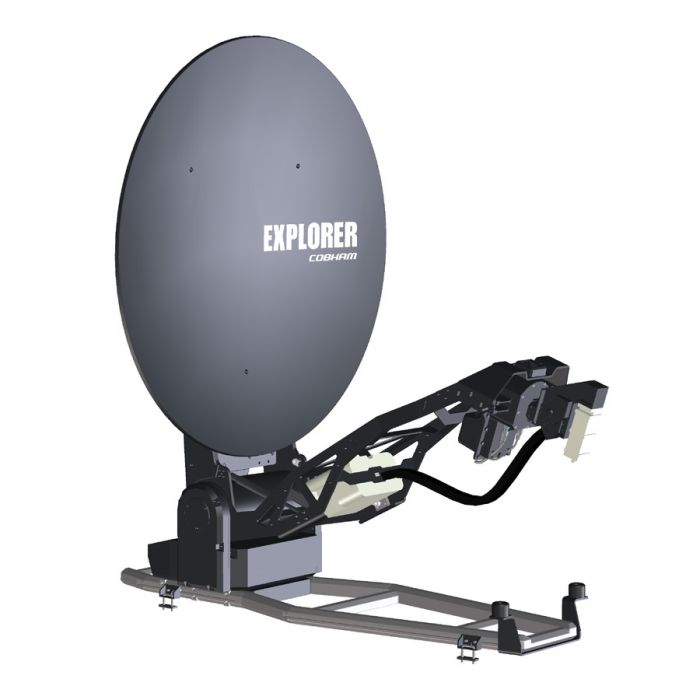

• Compact auto-deploy, drive-away system
• Easy to set up and use
• Commercial Ka Band feed chainwith 5W BUC
• 1.0m composite resin/fiber offset reflector
• Extremely Low Backlash Cable Drive System
• Integrated Inmarsat GX® Core Module
• LCD Display and Web-Based User Interface

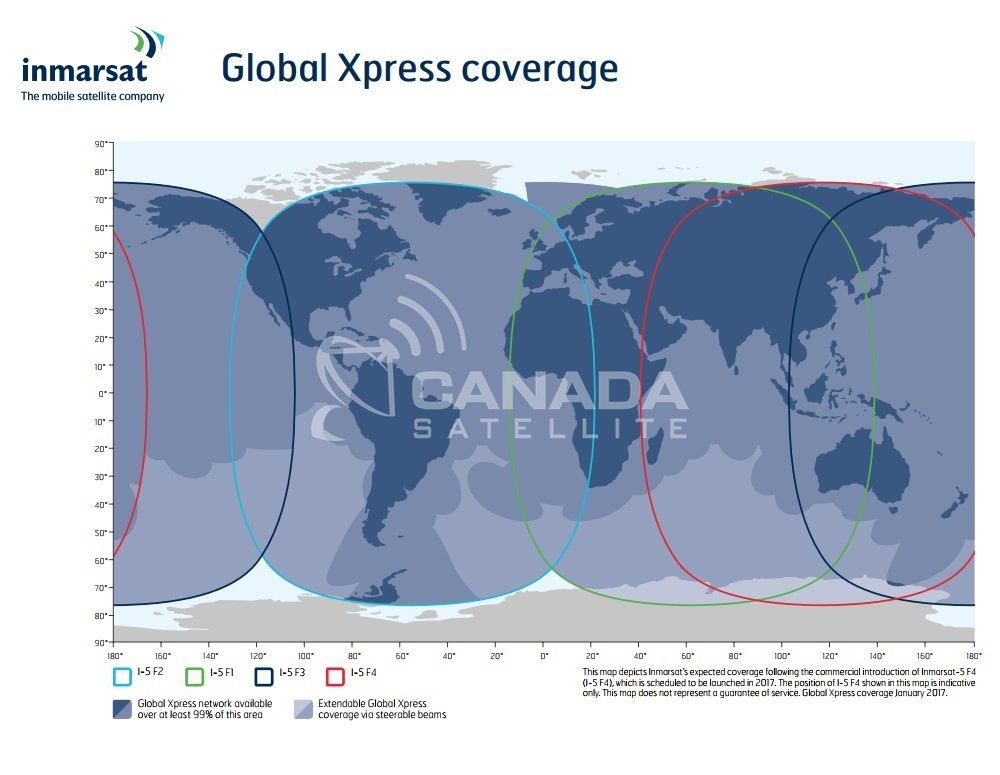

This map depicts Inmarsat’s expected coverage following the commercial introduction of Inmarsat-5 F4 (I-5 F4). The position of I-5 F4 shown in this map is indicative only. This map does not represent a guarantee of service. Global Xpress coverage January 2017.
