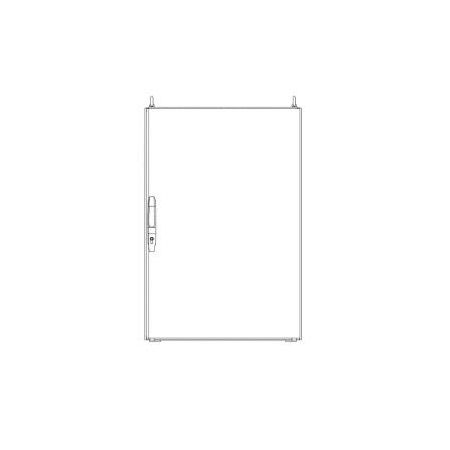

ZENITEL CAB24FWD-V2 Pre-Assembled Cabinet Floor 19'' 24HU 800X800x1250 Mm (2810010112)

• Front door: Single steel doors
• Front door handle: CAB-DH-K
• Rear door: Single steel doors
• Rear door handle: double-bit lock
• Including 4x eyebolts for crane transportation
• The door hinged on the right, may be swapped to the left
• Base/plinth not included, can be ordered separately

Our all-new series of multi-use cabinets are designed to be used in a marine environment. This floor-mounted 24HU cabinet is DNV-GL type approved and it's perfect for installing our 19'' system components to create a complete system for your installation.

The cabinet comes with a front metal door that is hinged on the right, and it can be swapped to the left if needed. The rear side of the cabinet is covered with a fixed metal plate and can be replaced with rear doors if needed. Cabinet variant 24 HU, 800 wide and 800 deep. Internal 19-inch fixed frame for up to 24 HU. Includes the choice of DIN rail mounting in the bottom, prepared for optional power switch-over modules and terminals. It comes with 3 fixed door plates, front doors, and chassis ground.

By default, the cabinet is IP55 but the final IP rating will depend on the chosen ventilation options.

This cabinet is suitable for:

• ACM Advanced modules
• SPA-V2 Public Address
• EXIGO Public Address
• Radio
• LAN
• CCTV
• IPTV
• DECT
• Paging
• Masterclock
• UPS (small)
